Laurel 399-132 CryptoTap Plus Medium Side Mount Box for Coin Boxes and Vacuums

Brand:
Mfr. Model #:
399-132
KR Part #:
CPS3025-CTP
Weight:
0.00 lbs
Out of Stock - Pre-Order Now
MSRP
$214.00
Now Only!
$142.67

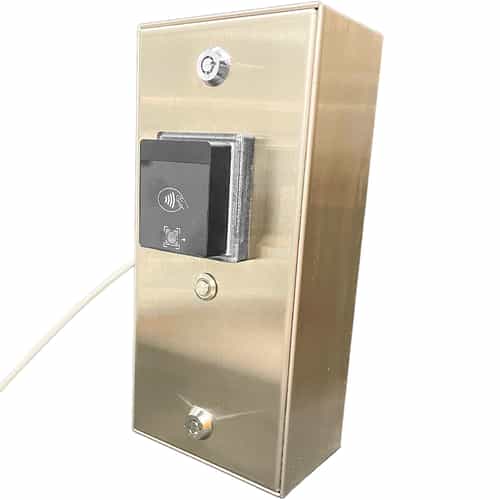

Easily mount a CryptoTap Plus to the side of a coin box found in a self-serve bay or on a car wash vacuum. This is the perfect solution when you want to add new devices but you have no room on the faceplate. Bidirectional mounting ability means the box can be mounted on either side. Made of 16-gauge stainless steel with precut holes for both units. Includes: side mount box, 2 tube locks with keys, and flush mount screws.

NOTE: Image for illustrative purposes only. CryptoTap Plus NOT included.




Product Description

Mounting Box for CryptoTap Plus

The Laurel 399-132 Side Mount Box allows you to mount a tap device on a wash bay coin box or vacuum when you don't have room on the faceplate. It's designed to fit the CryptoTap Plus from CryptoPay and the accompanying push button. This convenient box boasts bidrectional design, so you can mount it on either the left or right side of the coin box. It's made of tough 16-gauge stainless steel and all the holes are precut for installation of your devices.

399-132 Details

  • Designed for use with a CryptoTap Plus tap device (with push button)
  • 16-gauge stainless steel construction
  • Dimensions: 11 1/4" height x 5 1/4" width x 3 1/2" depth
  • Side panel cover available to cover side holes if needed (KR part #P399127)

Components

  • Side mount box with base and cover
  • 2 tubular locks with 2 keys (keyed alike)
  • Front panel with holes precut for device and button

Installation

  • Locate Side Mount Box and mark the side of your surface for box mounting.
  • Drill your choice of holes in mounting surface (box has 1/4" diameter holes).
  • Drill or knock out a wire clearance hole in the mounting surface to allow component wires into your meter box.
  • Complete wire connections per your equipment and CryptoTap instructions.
  • We suggest a small bead of silicone caulk at the top surface corners to stop water intrusion.
  • The box is not designed to be waterproof, aim to protect wire connections.
  • See further instructions under "Manuals"

Items Not Included (Purchase Separately)

  • CryptoPay CryptoTap Plus
  • Mounting fasteners for the (up to 8) 1/4" diameter holes in box

Other Side Mount Box Options

  • 399-131 CryptoTap Plus and LED7 Timer Side Mount Box (KR part#CPS3025-TAP-T)
  • 399-85 CryptoPay Swiper Side Mount Box (KR part #CPS3025)
  • 399-160 CryptoPay Swiper and CryptoTap Side Mount Box (KR part #CPS3026)
  • 399-150 CryptoPay, CryptoTap, Dixmor LED6/LED7 Side Mount Box (KR part #CPS3025-VT)
  • 399-120 CryptoPay and Timer Side Mount Box for Vacuum and Bay (KR part #CPS3025-V)
  • 399-130 CryptoTap Side Mount Box (KR part #CPS3025-T)
  • 399-85-TAP CryptoTap Plus Side Mount Box (KR part #CPS3025-TAP)
  • 399-140 NAYAX Medium Side Mount Box (KR part #LP399140)
  • 399-170 NAYAX Large Side Mount Box (KR part #LP399170)
  • 399-145 NAYAX and LED7 Side Mount Box (KR part #LP399145)
  • 399-161 CryptoTap Plus and Dixmor LED6, LED7, LED8 Timer Side Mount Box (KR part #CPS3027)
  • 399-175 NAYAX and Dixmor LED6/LED7 Large Side Mount Box (KR part #LP399175)
