Laurel Metal 399-170 NAYAX Large Side Mount Box for Vacuum and Bay Meter Boxes
Brand:
Mfr. Model #:
399-170
KR Part #:
LP399170
Weight:
4.25 lbs
Easily mount a NAYAX card reader to the side of a coin box or flat surface near your equipment. Bidirectional mounting ability means the box can be mounted on either side. Slightly larger size provides room for decals and stickers. Includes: side mount box and 2 tube locks with keys.

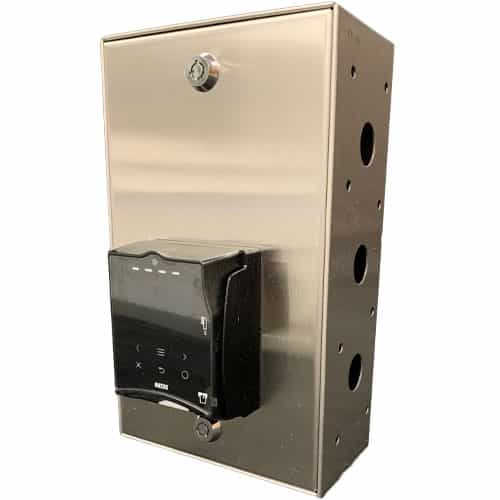

NOTE: Image shows installed NAYAX. Please note this product is only the box - NAYAX sold separately.
NOTE: Image shows installed NAYAX. Please note this product is only the box - NAYAX sold separately.
Product Description
Side Mounted Box for NAYAX Reader
The Laurel Metal 399-170 Side Mount Box is used to mount a NAYAX unit when you don't have enough room on your meter box faceplate. Bidirectional design enables mounting on either the left or right side of the coin box or any surface near your equipment. This tough 16-gauge stainless steel box is prepared to mount NAYAX card reader.
Details
- 16-guage stainless steel construction
- Left or right bidirectional mounting ability
- Dimensions: 11 1/4" H x 6 3/4" W x 3 7/8" D (outside)
- Side panel cover to hide holes when mounted on a wall (KR part #LP399167)
Components
- Side mount box – made up of a base and a cover
- 2 tubular locks with 2 keys – keyed alike
- Front door panel has holes punched for mounting NAYAX
Installation
- Locate Side Mount Box and mark the side of your surface for box mounting.
- Drill your choice of holes in mounting surface (box has 1/4" diameter holes).
- Drill or knock out a wire clearance hole (3 choices) in the mounting surface to allow component wires into your meter box.
- Complete wire connections per your equipment and NAYAX instructions.
- We suggest a small bead of silicone caulk at the top surface corners to stop water intrusion.
- The box is not designed to be waterproof, aim to protect wire connections.
- Check unuder “Manuals” for further instructions.
Items Not Included (Purchase Separately)
- Nayax Reader (KR part #VPOS-TOUCH) – card reader
- Mounting fasteners for the (up to 8) 1/4" diameter holes in box
Other Side Mount Box Options
- 399-132 CryptoTap Plus Medium Side Mount Box (KR part#CPS3025-CTP)
- 399-85 CryptoPay Swiper Side Mount Box (KR part #CPS3025)
- 399-160 CryptoPay Swiper and CryptoTap Side Mount Box (KR part #CPS3026)
- 399-150 CryptoPay, CryptoTap, Dixmor LED6/LED7 Side Mount Box (KR part #CPS3025-VT)
- 399-120 CryptoPay and Timer Side Mount Box for Vacuum and Bay (KR part #CPS3025-V)
- 399-130 CryptoTap Side Mount Box (KR part #CPS3025-T)
- 399-85-TAP CryptoTap Plus Side Mount Box (KR part #CPS3025-TAP)
- 399-131 CryptoTap Plus and LED7 Side Mount Box (KR part #CPS3025-TAP-T)
- 399-140 NAYAX Medium Side Mount Box (KR part #LP399140)
- 399-145 NAYAX and LED7 Side Mount Box (KR part #LP399145)
- 399-161 CryptoTap Plus and Dixmor LED6, LED7, LED8 Timer Side Mount Box (KR part #CPS3027)
- 399-175 NAYAX and Dixmor LED6/LED7 Large Side Mount Box (KR part #LP399175)
