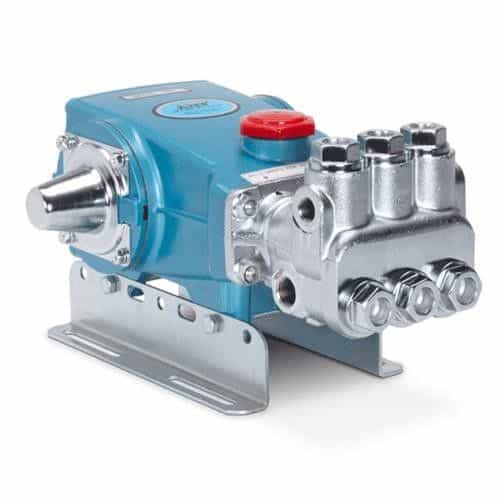

550 CAT Plunger Pump - 5 GPM, 3000 PSI, 8.2 Max HP

Brand:
Mfr. Model #:
550
KR Part #:
PU00550
Weight:
28.00 lbs
Availability:
3
Low Stock Warning
MSRP
$2,411.00
Now Only!
$1,234.44

The 550 CAT Pump 5 GPM, 3000 PSI, 8.2 Max HP is one of many CAT Pumps that are used in a wide variety of cleaning and washing applications. Including selfserve car washes and pressure washing.

Note: Brackets not included!




Technical Specifications

Bore: 16 millimeter
Crankcase Capacity: 25 ounce
Max GPM: 5
Max PSI: 3000
Shaft Diameter: 24 millimeter
Stroke: 24 millimeter
RPM: 1415
Max Temperature: 160 degrees F
Inlet Port: 1/2 inch

Product Description

550 CAT 7 Frame Plunger Pump

These easy maintenance pumps are the most popular plunger pumps for self-service bays with superior triplex plunger design and lubricated seals and V-packings that are cooled by the liquid being pumped. Inlet and discharge valve assemblies interchange for easier maintenance. The oil bath crankcase assures optimum lubrication. Close tolerance concentricity of the ceramic plunger maximizes seal life.

Quality materials like 304 stainless steel valves and seats are hardened and polished for ultimate seating and extended valve life. The forged brass manifold is strong and corrosion resistant.
Special concentric, high-density, polished, solid ceramic plungers provide a true wear surface and extended seal life, and the specially formulated Hi-Pressure Seals or V-Packings offer unmatched performance and seal life. A die cast aluminum crankcase provides high strength, minimum weight and precision tolerance control.

Dimensions : 13.6 x 9.61 x 6.41" (346 x 244 x 163 mm)

Specifications:

  • Triplex Plunger Pump
  • Flow: 5.0 GPM
  • Pressure: 100-3000 PSI
  • RPM: 1415 RPM
  • HP: 8.2
  • Inlet Pressure Range: Flooded to 60 PSI (Flooded to 4 BAR)
  • Stroke: 0.945" (24 mm)
  • Bore: 0.630" (16 mm)
  • Crankcase Capacity : 25 oz. (0.75 L)
  • Maximum Liquid Temperature : 160°F (71°C)
  • Inlet Ports (2) : 1/2" NPTF (1/2" NPTF)
  • Discharge Ports (2) : 3/8" NPTF (3/8" NPTF)
  • Shaft Diameter : 0.945" (24 mm)
  • Weight : 25.5 lbs. (11.5 kg)
