CAT Pumps 530 Triplex Plunger Pump - 5 GPM, 2500 PSI, 1100 RPM

Brand:
Mfr. Model #:
530
KR Part #:
PU00530
Weight:
27.80 lbs
GTIN:
814338021565
In Stock
MSRP
$2,351.00
Now Only!
$1,203.71

A triplex plunger pump with a corrosion resistant chrome plated brass manifold. O-rings and seals are lubricated by the fluid moving through the pump. Pump provides a maximum flow rate of 5 GPM and tolerates a maximum pressure of 2500 PSI. Shaft protector sold separately.

Note: Brackets not included.




Technical Specifications

Crankcase Capacity: 25 oz.
Max GPM: 5
RPM: 1100
Max PSI: 2500
Inlet Port: 1/2 inch
Max Temperature: 160 degrees F
Bore: 18 millimeter
Stroke: 24 millimeter
Shaft Diameter: 24 millimeter

Product Description

7 Frame Plunger Pump

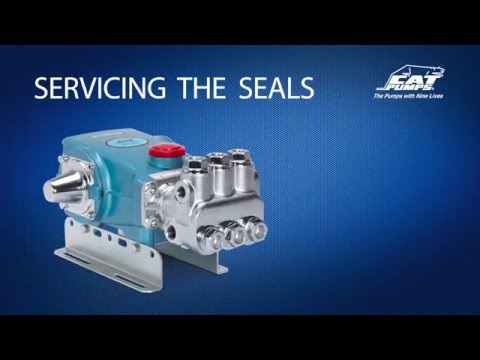

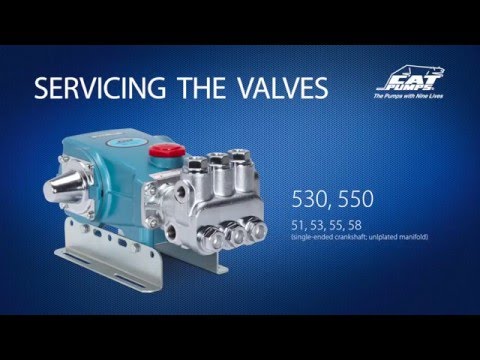

CAT Pump model 530 is a triplex plunger pump that operates with low pulsation and high efficiency. Constructed with a chrome-plated brass manifold that is extremely resistant to corrosion. Valve assemblies are made of 304 stainless steel. Solid ceramic polished plungers provide a true wear surface for extended seal life. Seals and O-rings are made of NBR (Buna-N). The CAT 530 pump is engineered to lubricate and cool the seals as the liquid moves through it during operation. Shaft protector is sold separately.

Specifications:

  • Max Flow: 5 GPM
  • Max Pressure: 2500 PSI
  • Inlet Port Size: 1/2" NPT(F)
  • Discharge Port Size: 3/8" NPT(F)
  • RPM: 1100
  • Bore: 0.708" (18 mm)
  • Stroke: 0.945" (24 mm)
  • Inlet Pressure Range: Flooded to 60 PSI
  • Crankcase Capacity: 25 oz.
  • Inlet Ports (2): 1/2" NPT(F)
  • Discharge Port (2): 3/8" NPT(F)
  • Maximum Liquid Temp. (NBR): 160° F
  • Drive Type(s): Belt, Clutch, Flexible Coupling and Bellhousing
  • Material: Brass
  • Shaft Diameter: 0.945" (24 mm)
  • Dimensions: 13.70 x 9.61 x 5.95"
  • Weight: 27.80 lbs.
  • GTIN: 814338021565
  • Shaft protector: Part# PU43256

Features:

  • Triplex plunger design ensures high efficiency and low pulsation.
  • Durable V-packings (Model 550) or high-pressure seals (Model 530) are lubricated and cooled by the liquid being pumped.
  • Pre-set low-pressure seals provide secondary protection against external leaks and require no packing adjustment.
  • Special high-density, polished, concentric plungers provide a true wear surface and extended seal life.
  • Pump comes standard with NBR seals. Alternative seal materials are available for higher temperature or chemical compatibility.
