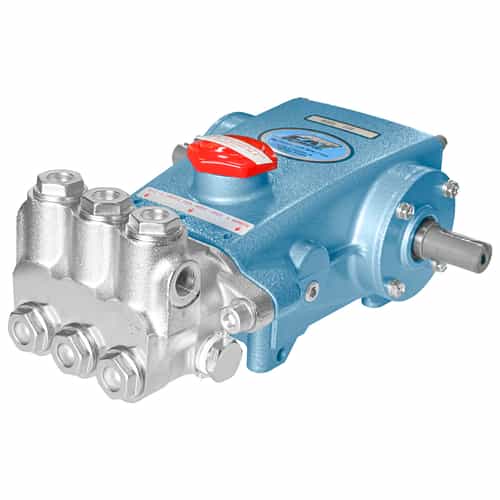

CAT Pumps 310S.3000 High Temperature 5 Frame Plunger Pump - 2200 PSI, 4 GPM, 950 RPM

Brand:
Mfr. Model #:
310S.3000
KR Part #:
PU00310S.3000
Weight:
23.00 lbs
Availability:
4
Low Stock Warning
MSRP
$1,770.00
Now Only!
$854.23
Reaches 950 RPM and 2500 PSI. Can withstand temperatures of 190° Fahrenheit. Engineered for easy service and repairs.



Technical Specifications

RPM: 950
Max GPM: 4
Max PSI: 2200
Inlet Port: 1/2 inch
Max Temperature: 190 degrees F
Bore: 18 millimeter
Stroke: 18 millimeter
Shaft Diameter: 20 millimeter
Crankcase Capacity: 18 ounce
Outlet Port: 3/8 inch

Product Description

5 Frame Plunger Pump

This pump is a triplex positive displacement, reciprocating, plunger pump. Constructed with forged brass manifolds. Stainless-steel sleeves in the seal and valve chambers extends the life of the pump in harsh water conditions making this pump great for use in car washes. 310S is a belt driven pump. Comes standard with NBR seals with options for compatibility with various chemicals. Provides a flow of 4.0 GPM, an RPM of 950 and a maximum pressure of 2200 PSI.

Replacement 310S pump heads can be found here.

Specifications:
  • Max Flow: 4 GPM
  • Max Pressure: 2200 PSI
  • Inlet Port Size: 1/2" NPT(F)
  • Discharge Port Size: 3/8" NPT(F)
  • RPM: 950
  • Drive Type(s): Belt, Clutch, Flexible Coupling and Bellhousing
  • Material: Brass

Product Features:

  • Triplex design offers high efficiency and low pulsation.
  • Durable high-pressure seals are lubricated and cooled by pumped liquid.
  • Pre-set Lo-Pressure Seals provide secondary protection against external leaks and require no packing adjustment.
  • Precision press-fit, 304 Stainless Steel inserts in the sealing areas and valve chambers of the manifold to eliminate washouts and extend pump life.
  • Standard NBR seals with alternative options for temperature and chemical compatibility
