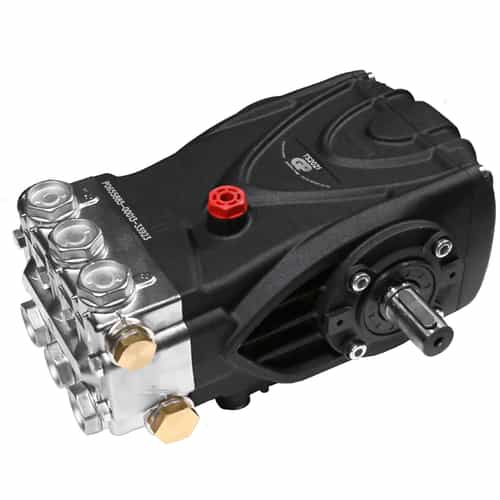

General Pump TS2021 T-47 Series Right Shaft Triplex Plunger Pump - 5.6GPM, 3500PSI, 1450RPM
Brand:
Mfr. Model #:
TS2021
KR Part #:
GPTS2021R
Weight:
33.80 lbs
GTIN:
682491016991
Pressure cleaning pump from the General Pump T Series. Triplex (three plunger rods) design with a brass manifold and right shaft .
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 40.6 ounce
Inlet Port: 1/2 inch
Max GPM: 5.6
Max PSI: 3500
Shaft Diameter: 24 millimeter
Stroke: 16 millimeter
RPM: 1450
Max Temperature: 165 degrees F
Product Description
TS2021 - Right Shaft Plunger Pump
This T-47 Series triplex plunger pump is the preferred pump frame in the pressure cleaning industry. It features a forged brass manifold. Plus, it has solid ceramic plungers with continuously lubricated packings. This pressure cleaning pump also has unitized stainless steel inlet and discharge valves.
This heavy-duty General Pump TS2021 pump has a large capacity, die-cast, anodized aluminum oil-bath crankcase. It has over-sized connecting rods for maximum life and a heavy-duty tapered roller bearing.
Dimensions: 12.6" x 9.2" x 6.9"
Specifications:
- Shaft on right side
- Maximum inlet pressure: 125 PSI
- Maximum discharge pressure: 3500 PSI
- Plunger bore: 20 mm
- Plunger stroke: 16 mm
