General Pump TS2021L T-47 Series Left Shaft Triplex Plunger Pump - 5.6GPM, 3500PSI, 1450RPM
Brand:
Mfr. Model #:
TS2021L
KR Part #:
GPTS2021L
Weight:
33.60 lbs
GTIN:
682491026501
Availability:
5

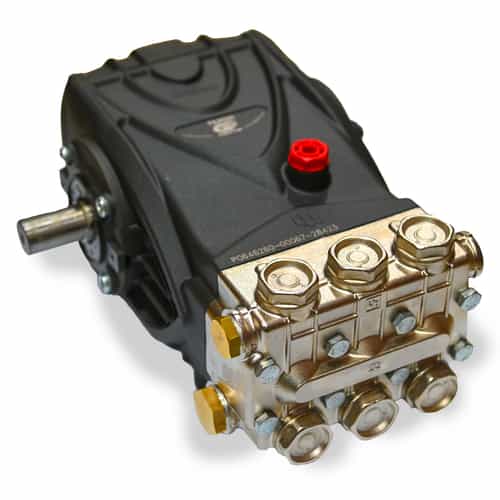

This General Pump TS2021 pump is a triplex plunger design with a brass manifold and left shaft. It is equipped with a stainless steel inlet and discharge valves. The maximum pressure this pump endures is 3500 PSI.
Technical Specifications
Bore: .787 inch
Crankcase Capacity: 40.6 oz.
Inlet Port: 1/2 inch
Max GPM: 5.6
Max PSI: 3500
Max Temperature: 165 degrees F
RPM: 1450
Shaft Diameter: .945 inch
Stroke: .630 inch
Product Description
Left Shaft General Pump TS2021 Triplex Plunger Pump
This heavy-duty General Pump TS2021 pump has a large capacity, die-cast, anodized aluminum oil-bath crankcase. It has over-sized connecting rods for maximum life and a heavy-duty tapered roller bearing.
This T 47 Series triplex plunger pump is the preferred pump frame in the pressure cleaning industry. It features a forged brass manifold. Plus, it has solid ceramic plungers with continuously lubricated packings. This pressure cleaning pump also has unitized stainless steel inlet and discharge valves.
Dimensions: 12.6" x 9.2" x 6.9"
Specifications:
- Shaft on left side
- Maximum inlet pressure: 125 PSI
- Maximum discharge pressure: 3500 PSI
- Plunger bore: 20 mm
- Plunger stroke: 16 mm
