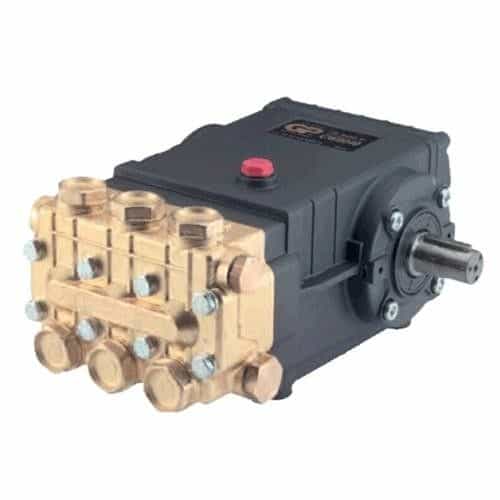

TS2011 Pump

the TS2011 General Pump, a triplex plunger pump, features an advanced forged brass manifold for increased working pressure. Solid ceramic plungers with continuously lubricated packings and over-sized connecting rods are also in place, for maximum life span. A 24mm solid shaft is used, along with a 20mm bore and 12mm stroke. There's also the heavy-duty tapered roller bearing plus unitized stainless steel inlet and discharge valves.

The results of this extensive engineering are impressive specifications such as the 4.75 GPM, the 3500 PSI maximum discharge pressure, and the maximum pump speed of 1750 RPM.

Dimensions: 12.6" X 9.2" X 6.9"

Features:

• Triplex Plunger Pump
• Advanced forged brass manifold, increases working pressure to 3,500 PSI
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Solid ceramic plunger
• Unitized stainless steel inlet and discharge valves

Specifications:

• Max Volume: 4.75 GPM
• Max Discharge Pressure: 3500 PSI
• Max Pump Speed: 1750 RPM
• Max Temperature: 165 F
• Inlet Port: 1/2"-14 BSP-F
• Outlet Port: 3/8"-19 BSP-F

TS2011 Pump Repair Kits:

• Check Valve Kit 1
• Oil Seal Kit 2
• Oil Seal Kit 3
• Valve Cap and O-Ring Kit 4
• Valve Cap Kit 5
• Piston Bolt Kit 6
• Head Ring Kit 7
• Packing Retainer Kit 10
• Seal Set Kit 28
• Low Pressure Seal Kit 69
• Solenoid Valve Kit 71
