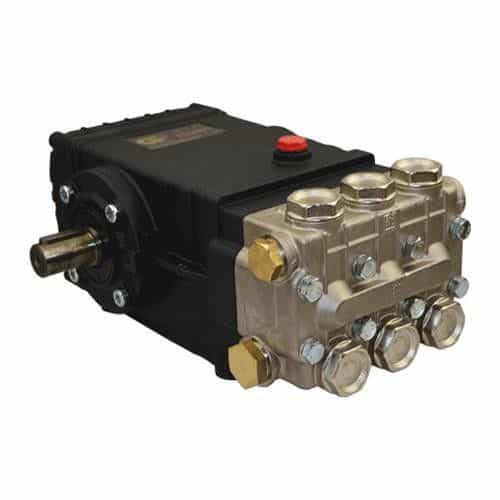

Pressure Cleaning Pump

General Pump's T Series 47 frame is preferred in the pressure cleaning industry. Manifold is constructed with forged brass and has a lifetime warranty. Oil-bathed crankcase ensures constant lubrication. Inlet and outlet valves are made with unitized stainless-steel.

Note: This is a left shaft model. Right shaft is also available.


Specifications:

• GPM: 4.0
• PSI: 3500
• RPM: 1450
• Bore: .787 in./20 mm
• Stroke: .472 in./12 mm
• HP: 9.6 EBHP
• Ship Weight: 32.0 lbs.
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
• Bore: .787 in. / 20 mm
• Stroke: .472 in. / 12 mm
• Crankcase Oil Capacity: 37.2 oz.
• Maximum Fluid Temperature: 165° F
• Inlet Port Thread: 1/2-14 BSP-F
• Discharge Port Thread: 3/8-19 BSP-F
• Shaft Diameter: .945 in. / 24 mm
• Weight: 32 lbs.
• Dimensions: 12.6" x 9.2" x 6.9"

Features:

• Pressure cleaning industry preferred frame
• Forged brass manifold
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless-steel inlet and discharge valves
• Over-sized connecting rods
• Heavy-duty tapered roller bearing
