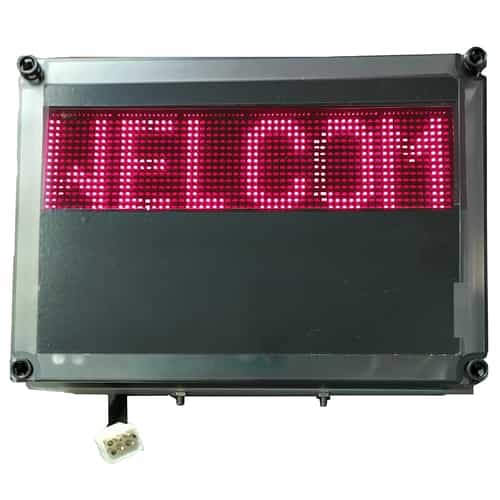

Multi-Value Display Timer for Fragramatics Car Wash Vacuums

This Kleen-Rite IDX Timer is a new, power-saving replacement for the BT902 and BT912 FRAGRA series previously offered by IDX. This new timer is 20% more efficient than the previous timer it is replacing and carries a two-year warranty. This model is designed for use with Fragramatics machines. This is a multi-feature display timer with multi-value timing per up to 12 services and messages  with countdown or count-up mode, IDX "Card-Display Protocol", and the IDX-patented "Two Time Select" and "Lucky Time" features. Includes wiring harness, mounting studs, and remote jack.

Dimensions: 10" W x 7.1" H x 3" D

Specifications and Features

• Use with Fragramatic combo vacuum units
• Display brightness field - programmable with 3 settings
• Relay output internal fused with replaceable 5 amp fuse
• The display can be set to change brightness levels based on timer activity
• Operating voltages 12VAC/VDC to 28VAC to 32 DC
• Mounted in a polycarbonate case
• 20% reduction in power consumption over the BT series
• Replaces the BT902 and BT912
• Made in the U.S.A.
• 2-year warranty on material and workmanship
• Field programmable coin base for overseas sales from $0.05/$0.20/$0.25/$0.50/$1.00
• Programmable via handheld remote RC800 or with WT-RAM VIA SCADA WASH
• Dual time/value accumulating timer for multi-value services or promotions
• Counts up dollar value as coins are deposited, counts time down when running
• Fully programmable times and messages - Three 127 character, personalized scrolling messages (Welcome, Sales, Thank You)
• 12- Fully programmable times and services messages (72 characters each)
• Card display protocol
• KR part #: IDXDTB-F
• Manufacturer #: DTB-FRAGRA
