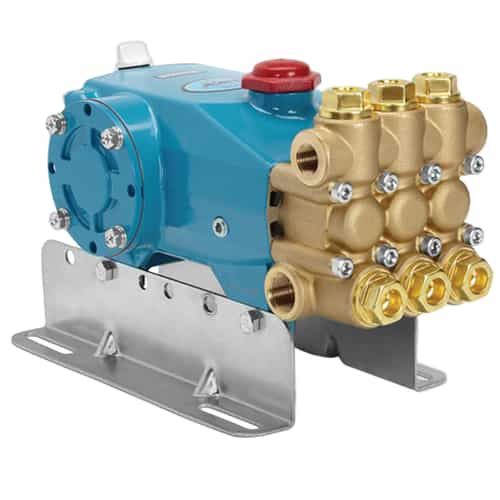

CAT Pumps 7CP6185CS Belt Drive Pressure Washer Pump - 8 GPM, 3500 PSI, 1320 RPM
Brand:
Mfr. Model #:
7CP6185CS
KR Part #:
PU7CP6185CS
Weight:
42.00 lbs
Perfect for mobile pressure washing trailers, CAT Pumps 7CP6185CS is a 7CP Series pump featuring many improvements engineers at CAT have devised over the years. It produces a maximum flow rate of 8 GPM and a maximum pressure of 3500 PSI. The shaft is designed for belt-driven applications and is compatible with electric motors. This pump can also excel in other applications such as car washes and industrial use.
NOTE: This pump does NOT come with oil
Technical Specifications
Max GPM: 8
Max PSI: 3500
RPM: 1320
Max Temperature: 140 degrees F
Inlet Port: 3/4 inch
Outlet Port: 1/2 inch
Product Description
8 GPM - Belt-Driven Pressure Wash Pump
CAT Pumps 7CP6185CS is an updated 7CP Series triplex plunger pump designed to be mounted on mobile pressure washer trailers. It is used for various applications including surface prep, water jetting, and hydro excavation. Plus, this pump excels in car wash and industrial settings too! It has a belt-driven shaft that is used in conjunction with electric motors.
7CP Series Improvements
Engineers at CAT Pumps updated their 7CP Series pumps to meet the needs of mobile trailer pressure washing professionals. These updates include redesigned internal components like solid ceramic plungers, higher-quality seals, and machined stainless steel valves and seats that keep pumps running longer. The V-packings and low-pressure seals are completely lubricated and cooled, greatly increasing the pump's lifespan. Matched connecting rods and oversized bearings deliver hours of hassle-free service.
Typical Applications:
- Mobile Pressure Wash
- Surface Preparation
- Water Jetting
- Hydro Excavation
- Wash Down
- Car Wash
Specifications:
- Drive Type: Belt
- Flow: 8.0 GPM
- Pressure: 3500 PSI
- Pump RPM: 1320
- Minimum RPM: 100
- Inlet Pressure Range: Flooded to 70 PSI
- Max Liquid Temperature: 140° F
- Inlet Ports (2): 3/4" NPT(F)
- Discharge Ports (2): 1/2" NPT(F)
- Weight: 30.8 lbs.
- Dimensions: 13.48 x 9.21 x 6.83"
- Please note that this pump does NOT come with oil - find authentic CAT Pumps Oil here.
