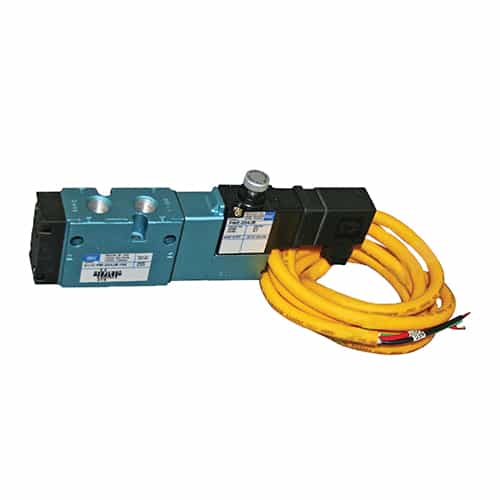

Mac Valves 811C-PM-114JB-152-416Y Single 800 Series Solenoid Valve - 1/4 FNPT, 120 VAC, Internal Pilot, With 6 Ft. Yellow Cord

Mfr. Model #:
KR Part #:
2.00 lbs
Out of Stock - Pre-Order Now
Now Only!

Single solenoid valve with internal pilot, locking manual operator, and rectangle connector. Features 1/4" NPTF connections and is compatible with 120VAC/60Hz or 110VAC/50Hz AC electrical connections. It includes a 6 foot yellow cord to make hooking this valve up to your equipment fast and easy.


Technical Specifications

Voltage AC: 120
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch

Product Description

120 Volt Internal Pilot Solenoid Valve

The Mac Valves 811C-PM-114JB-152-416Y is part of the 800 series. This 120V single solenoid valve is an internal pilot version with locking manual operation, a rectangular connector, and 1/4" female NPT ports. This version ships with a 6 foot cord pre-installed so all you need to do is wire it to a power source.

The MAC 800 Series features Mac Valves' balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations. Mac's balanced spool means the valve can be piped as a 4-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications. The one piece bonded seal spool means longer life and easy maintenance.

811C-PM-114JB-152-416Y Specifications:

  • 120 Volt AC
  • 50/60 Hz
  • 1/4" FNPT ports
  • Single solenoid
  • Internal pilot
  • Extended locking manual operator
  • Rectangular connector
  • 1.4 Cv (maximum)
  • 5/2 function
  • Includes 6 ft. yellow cord

Operational Benefits:

  • Balanced spool, immune to variations of pressure.
  • Short stroke with high flow.
  • The piston (booster) provides maximum shifting forces.
  • Powerful return force thanks to the combination of mechanical and air springs.
  • Bonded  spool with minimum friction, shifting in a glass-like finished bore.
  • Wiping effect eliminates sticking.
  • Pilot valve with balanced poppet, high flow, short and consistent response times.
  • Long service life.
