NPE Series 2 HP Centrifugal Pump

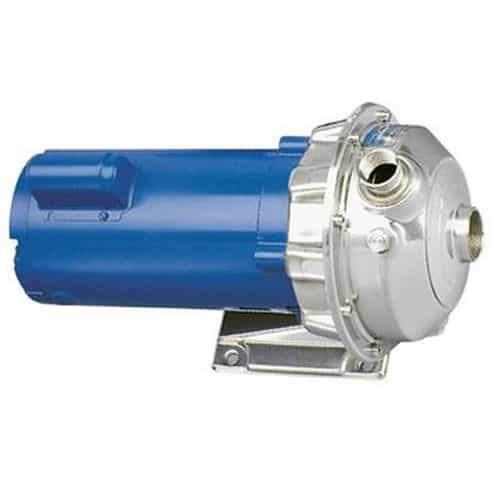

The Goulds 2ST1G9G4 is a centrifugal pump constructed with 316 stainless steel for superior corrosion resistance. It features an electric TEFC 3-phase motor to power the 5 15/16" impeller. Centrifugal pumps are typically used in car washes, pressure booster systems, liquid transfer, and spray systems.

Goulds 2ST1G9G4 Specifications:

• Casing Material: 316 Stainless Steel
• Maximum Flow Rate: 139 GPM
• Discharge: 1-1/4" NPT
• Suction: 1 1/2" NPT
• Heads To: 131 feet
• Horsepower: 2 HP
• Impeller Material: 316 Stainless Steel
• Impeller Size: 5 15/16"
• Maximum Working Pressure: 125 PSI (9 Bars)
• Motor Enclosure Type: TEFC PE - Totally Enclosed Fan Cooled (Premium Efficient)
• Motor Shaft Material: 316 Stainless Steel
• Phase: 3 Ph (Three Phase)
• Pole: 2
• Standard John Crane Type 21 mechanical seal: Carbon rotary, silicon carbide stationary, Viton elastomers, 316 SS metal parts
• Voltage: 208-230/460V AC
• Speed: 3500 RPM

Goulds 2ST1G9G4 Features:

• The close coupled compact design simplifies maintenance and can be mounted horizontally or vertically.
• Standard NEMA totally enclosed fan-cooled motor with a stainless steel shaft designed for continuous duty under all conditions.
• Liquid handling components are constructed with AISI 316L stainless steel for corrosion resistance and improved strength and durability.
• Casing and adapter are made with NPT threaded connections.
• Easily accessible vent, prime and drain connections with stainless plugs.
• Unique floating O-ring enclosed impeller designed for maximum efficiency.
• Standard John Crane mechanical seal of silicon carbide, Viton and stainless metal parts.
