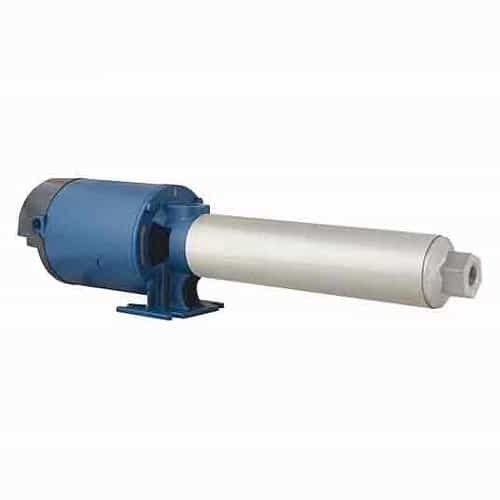

Flint and Walling PB2717S303A Multi-Stage Booster Pump, 17 Stage, 3HP, 208-240/480V AC

Brand:
Mfr. Model #:
PB2717S303A
KR Part #:
FWPB2717S303A
Weight:
60.00 lbs
GTIN:
054757095611
Out of Stock - Pre-Order Now
MSRP
$2,386.01
Now Only!
$1,424.59
A 3 phase, 17 stage booster pump. Used to boost water pressure. Accepts 208-240/480V AC electrical connections.



Technical Specifications

Horsepower: 3
Voltage AC: 208-240/480
Phase: Three
Max PSI: 225
Inlet Port: 1 inch
Outlet Port: 1 inch
Max Temperature: 140 degrees F

Product Description

17 Stage Booster Pump

The Flint and Walling PB2717S303A is a 17 stage booster pump used to boost the pressure of car wash water. It endures a maximum pressure of 225 PSI. Equipped with an inlet and outlet measuring 1" NPT to connect with your pipes. The housing of the pump is constructed with stainless steel for superior corrosion resistance and the motor features an open dripproof enclosure. It is compatible with 208 to 240/480V AC electrical connections.

Specifications:
  • Booster Pump Type: Multi-Stage Booster Pump
  • HP - Pumps: 3 hp
  • Voltage - Pumps: 208 to 240/480V AC
  • Phase - Pumps: 3
  • Outlet Size - Pumps: 1 in NPT
  • Inlet Size - Pumps: 1 in NPT
  • Max. Pressure - Pumps: 225 psi
  • Number of Stages - Pumps: 17
  • Housing Material - Pumps: Stainless Steel
  • Motor Enclosure: Open Dripproof
  • Pump Mounting Position: Horizontal or Vertical with Inlet Down
  • GPM @ 10 PSI: 35
  • Impeller Material: Noryl
  • Impeller Type: Closed
  • Max. Liquid Temp.: 140 Degrees F
  • Seal Material: Buna N, Carbon/Ceramic, Stainless Steel
  • Motor Type: Capacitor-Start
  • Width: 6 1/2 in
  • Height: 9 in
  • Bearing Type: Ball
  • Duty: Continuous
  • Hz: 60
  • Motor Ambient Temp. Rating: 65 Degrees C
  • Suction Lift: 0 ft.
