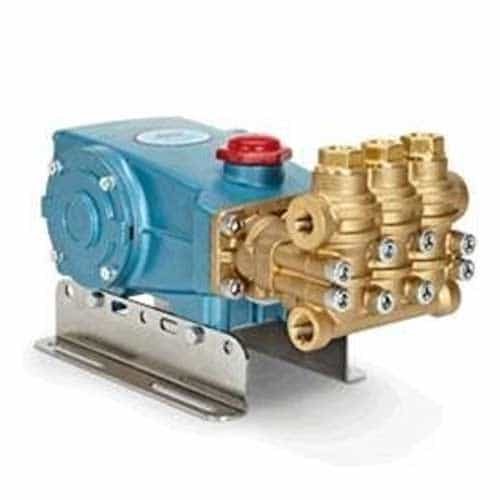

CAT Pumps 700RS Plunger Pump, 4.7 GPM, 5000 PSI, Reverse Shaft

Brand:
Mfr. Model #:
700RS
KR Part #:
PU00700RS
Weight:
30.52 lbs
Out of Stock - Pre-Order Now
MSRP
$4,072.00
Now Only!
$2,060.24
Industrial duty triplex positive displacement reciprocating plunger pump. Unchromed forged brass manifold, reverse shaft. Flow up to 4.7 GPM, at pressures up to 5000 PSI. Brackets not included!

NOTE: Reverse shaft model with opposite direction rotation.



Technical Specifications

Max GPM: 4.7
Max PSI: 5000
Max Temperature: 160 degrees F
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Bore: 14 millimeter
Stroke: 24 millimeter

Product Description

High-Pressure Cat Pump

This Cat Pump 700 high pressure triplex plunger pump delivers high efficiency and low pulsation. Stacked stainless steel valve assemblies and solid ceramic plungers provide for great durability. Great option for high-pressure wash applications, at your car wash or as part of pressure washing services!


Dimensions: 14.04" x 9.25" x 6.47"


Features

  • Durable V-Packings are lubricated and cooled by the liquid being pumped.
  • Pre-set Lo-Pressure Seals provide secondary protection against external leaks and require no packing adjustment.
  • Special high-density, polished, concentric plungers provide a true wear surface and extended seal life.
  • Stacked stainless steel valve design for long life and easy servicing.
  • Standard NBR seals
  • Reverse shaft for pump room mounting flexibility

Specifications

  • Max GPM: 4.5 GPM
  • Max Pressure: 5000 PSI
  • Max Temperature: 160° F
  • RPM: 1750 RPM
  • Inlet Port: (2) 1/2" NPT-F
  • Outlet Port: (2) 3/8" NPT-F
