Mac Valves 811C-PM-224JM-152 5/2 Solenoid Piloted Spool Valve - 1/4 in. NPTF

Brand:
Mfr. Model #:
811C-PM-224JM-152
KR Part #:
MAC2175
Weight:
1.00 lbs
Out of Stock - Pre-Order Now
MSRP
$126.26
Now Only!
$84.19
Single operator solenoid piloted spool valve for car wash, vacuum, and other applications requiring fast, consistent response time. 1/4" NPTF ports, 24VAC, Rectangular Male only enclosure. Part of the MAC 800 Series.

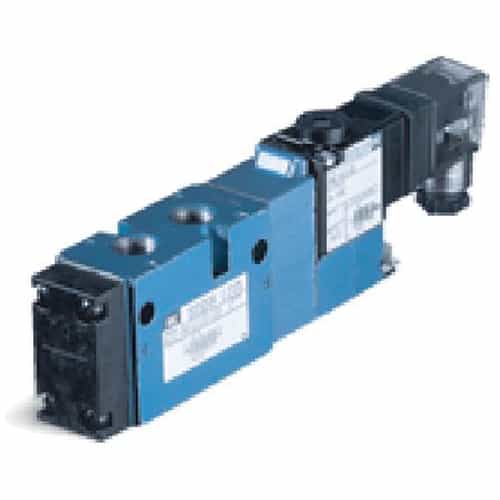

*Picture is representative of of the MAC 800 Series. Valve may have a different appearance - read specs carefully.*



Technical Specifications

Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Voltage AC: 24
Min PSI: 20
Max PSI: 120
Min Temperature: 0 degrees F
Max Temperature: 120 degrees F

Product Description

5/2 Solenoid Piloted Spool Valve

The MAC 800 Series of inline solenoid valves includes excellent options for car wash, vacuum, diverter, or selector applications where fast response time, high shifting forces and long life are crucial. The MAC Valves 811C-PM-224JM-152 is a single operator 5/2 internal valve with a short stroke, conical seats, and a balanced poppet. The balanced poppet design facilities using the same valve for many functions without the necessity of changing any parts.

Specifications:

  • 1/4" NPTF port size
  • 5/2 valve
  • 24VAC, 50/60 Hz
  • Temperature Range: 0°F - 120°F (-18°C - 50°C)
  • Pressure Range: 20 - 120 PSI
  • Single, locking extended manual operator
  • Rectangular male-only enclosure

Series Features:

  • Patented MACSOLENOID for fastest possible response times
  • Bonded balanced poppets for high flow, precise repeatability, and consistent operation.
  • Balanced poppet design permits versatility in piping.
  • Use on lube or non-lube service.
  • Extremely high cycle rates.
  • Extremely long service life due to unique poppet cushions.
  • Manual overrides as standard.
