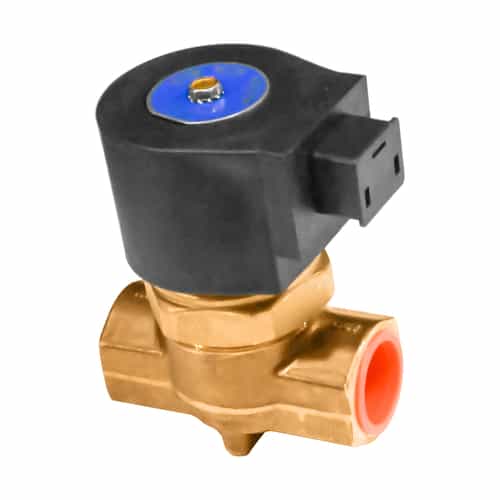

Dema A416P.6D Brass 3/4 in. Normally Closed Direct Acting Valve with 120VAC DIN Connector

Brand:
Mfr. Model #:
A416P.6D
KR Part #:
SOD416P120-DIN
Weight:
2.65 lbs
Availability:
1
Low Stock Warning
MSRP
$164.34
Now Only!
$106.81
This A416P direct acting brass body piston solenoid valve has a 120 VAC DIN connector. Buna-N seals provide durability. Maximum pressure of 150 PSI. Rated for 200 degrees Fahrenheit fluid temp. and 120 degrees Fahrenheit ambient temp.



Technical Specifications

Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Orifice: 0.593 inch
Voltage AC: 120
Max PSI: 150
Max Temperature: 120 degrees F
Liquid Temperature: 200 degrees F

Product Description

3/4" Normally Closed Solenoid Valve - 150 PSI

This is a direct acting, general purpose solenoid valve. It is designed for use with water, air, light oil, and noncorrosive fluids. Do not use for gas and other hazardous or explosive fluids. With the A416P model, the stem and plunger assembly opens the port. This releases pressure on top of the piston, which opens the main valve port. Features DIN connector for 120VAC/50-60 Hz power.

Size: 3/4" NPT

  • Rated for 200 degrees Fahrenheit fluid temp. and 120 degrees Fahrenheit ambient temp.
  • CV flow factor: 5.00
  • Orifice diameter: 0.593
  • Brass construction
  • Stainless steel seat
  • Teflon seal
  • 120V AC
  • DIN style connector
  • Maximum pressure: 150 PSI
  • Normally closed
