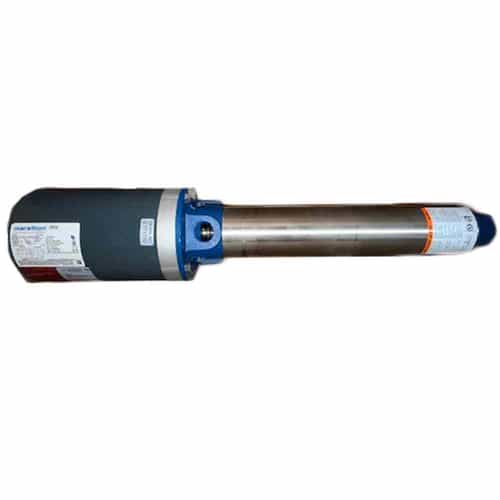

Flint and Walling PB2714C303 Artesian Drive 3 Phase Cast Iron Booster Pump System - 3 HP, 41.5 GPM

Brand:
Mfr. Model #:
PB2714C303
KR Part #:
FWPB2714C303
Weight:
57.00 lbs
GTIN:
054757035082
Out of Stock - Pre-Order Now
MSRP
$2,158.00
Now Only!
$1,251.64
Booster system with a powder-coated cast iron pump and a 3 horsepower motor. This continuous-duty system uses 3 phase operation with 14 stages. Has a maximum flow rate of 41.5 GPM and 1" inlet and outlet ports.



Technical Specifications

Inlet Port: 1 inch
Outlet Port: 1 inch
Horsepower: 3
Max GPM: 41.5
Max Temperature: 140 degrees F
Max PSI: 190
Voltage AC: 208-230/460

Product Description

3 Horsepower Constant Pressure Booster Pump Unit

The Flint & Walling PB2714C303 Booster System is a powder-coated cast iron pump with a 3 horsepower motor. This boosting pump system has continuous duty cycle, 3 stage operation, and 14 stages. Designed to provide steady, ample water flow in car wash, agriculture, and other pumping applications.

Dimensions: 6.5" x 9" x 30.56"

Specifications:

  • Flow Range: 1.5-41.5 GPM
  • Pressure Boost Range: 86 to 216 PSI
  • Liquid Temperature Range: 34° to 140° Fahrenheit
  • Duty Cycle: Continuous
  • Pumping Medium: Clear water
  • Phase: 3
  • Horsepower: 3
  • 208-230/460V
  • 60 Hz
  • Stages: 14
  • Inlet: 1" NPT
  • Outlet: 1" NPT
  • Weight: 57 lbs.
