CAT Pumps 5CP3120BHCU Plunger Pump with Bell Housing, Flex Coupler, and Unloader

Brand:
Mfr. Model #:
5CP3120BHCU
KR Part #:
PU5CP3120BHCU
Weight:
26.50 lbs

Usually Ships in 2 Weeks

MSRP
$1,881.82
Now Only!
$1,000.60

Combination unit including a triplex 5 frame plunger pump, bell housing, flex coupler, and unloader. The pump has solid ceramic plungers and a forged brass manifold. 3000 PSI, 4.8 GPM, 1750 RPM. This pump does NOT come with oil

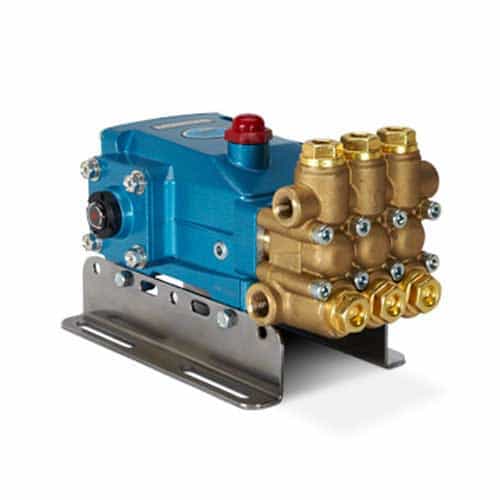

NOTE: The main image shows the pump only; see alternate images to see all of the components individually.




Technical Specifications

Max GPM: 4.8
RPM: 1750
Crankcase Capacity: 17 ounce
Bore: 16 millimeter
Stroke: 18 millimeter
Shaft Diameter: 20 millimeter
Max PSI: 3000
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch

Product Description

Triplex Pump with Housing, Coupler, and Unloader

The CAT Pump 5CP3120BHCU Pump Package includes a plunger pump, bell housing, flex coupler, and a pressure unloader. The pump is a triplex style plunger pump with a forged brass manifold, 304 stainless steel valve assemblies, and Buna-N seals. It is a five frame model that can be used in applications up to 3000 PSI.

Dimensions: 10.4" x 8.6" x 5.8"

Components Included:

  • 5CP3120CSS Pump
  • 76184.5CP Bell House
  • 8230 Flex Coupler
  • 7694 Unloader

Pump Specifications:

  • Maximum Pressure: 3000 PSI
  • Maximum Flow: 4.8 GPM
  • Maximum Speed: 1750 RPM
  • Inlet Pressure: -2.5 to 60 PSI inlet
  • Maximum Temperature: 160° F
  • Inlet Port: (2) 1/2" FNPT
  • Outlet Port: (2) 3/8" FNPT
  • 16mm bore
  • 17 oz. crankcase capacity
  • Please note that this pump does NOT come with oil - find official CAT Pumps Oil here.
