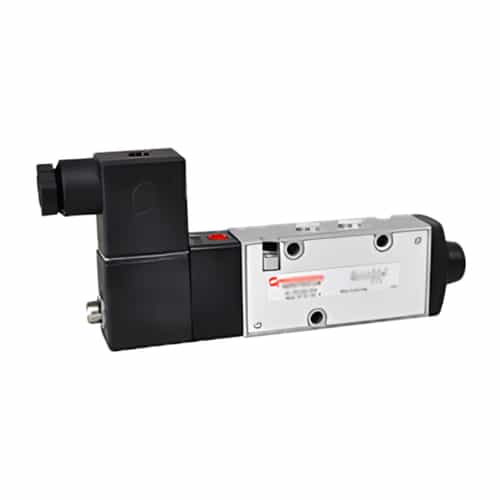

Norgren V62S511A-A313JB Solenoid Actuated Valve, 3/8 in. NPT, 24VDC, 5/2

Brand:
Mfr. Model #:
V62S511A-A313JB
KR Part #:
SK0610-24DC
Weight:
1.59 lbs
Usually Ships in 5 Weeks
MSRP
$253.60
Now Only!
$181.14

Norgren high flow rate 5/2 function direct control pilot valve. Manifold system features easy assembly. Low power consumption, extensive manual override options. Maximum operating pressure is 145 PSI. This solenoid actuated valve is part of the V62 Series.




Technical Specifications

Voltage DC: 24
Max GPM: 1.3 Cv
Min Temperature: 14 degrees F
Max Temperature: 122 degrees F
Min PSI: 29
Max PSI: 145

Product Description

V62 Series Directional Control Valve

A Norgren solenoid actuated valve with 3/8" NPT and 5/2 operation. This is a low power, high flow, and maintenance free part. It also comes with an available fixed length manifold. The solenoid is part of the 62 Series Norgen lineup. The media type for this solenoid is compressed air.

Specifications:

  • 3/8" NPT
  • Operation: 5/2
  • Max Temperature: 122 F
  • Min Temperature: 14 F
  • Max PSI: 145
  • Min PSI: 29
  • Media: Compressed Air
  • Actuation: Sol/Sol
  • Operation: 5/2
  • V62 Series
