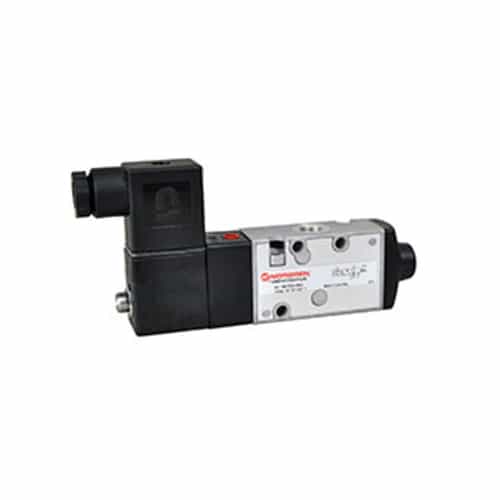

IMI Norgren V62S417A-A318JB Solenoid Actuated Valve with Spring Return, 3/8 in. NPT, 120V, 3/2 Normally Closed

Brand:
Mfr. Model #:
V62S417A-A318JB
KR Part #:
SK0600-120
Weight:
1.15 lbs
Usually Ships in 5 Weeks
MSRP
$212.86
Now Only!
$152.04

Norgren V62 Series high flow rate direct control solenoid valve. 120 VAC with low power consumption. 3/8" NPT port size.




Technical Specifications

Voltage AC: 120
Max GPM: 1.3 Cv
Min PSI: 29
Max PSI: 145
Min Temperature: 14 degrees F
Max Temperature: 122 degrees F

Product Description

V62 Series High Flow Non-Locking Solenoid

From the acclaimed Norgren V62 Series, the V62S417A-A318JB is a non-locking solenoid valve. It require low power yet is able to offer a high flow. It's also maintenance free and comes available with a fixed length manifold.

As is common in the V62 Series, this solenoid offers sophisticated engineering. Utilizing a 3/8" NPT port size, minimum PSI registers 29 while maximum PSI checks in at a robust 145. A 3/2 valve operation is in place. Actuation comes in the form of solenoid pilot / spring return. Minimum operating temperature is 14 F and the maximum operating temperature is 122 F. This solenoid will handle compressed air with ease and is compatible with 120 VAC.

V62 Series Solenoid Specs:

  • Max PSI: 145
  • Min PSI: 29
  • Max Temperature: 122 F
  • Min Temperature: 14 F
  • Voltage AC: 120
  • Port Size: 3/8" NPT
  • Media: Compressed Air
  • Actuation: Solenoid Pilot / Spring Return
  • Valve Operation: 3/2
  • Maintenance Free
