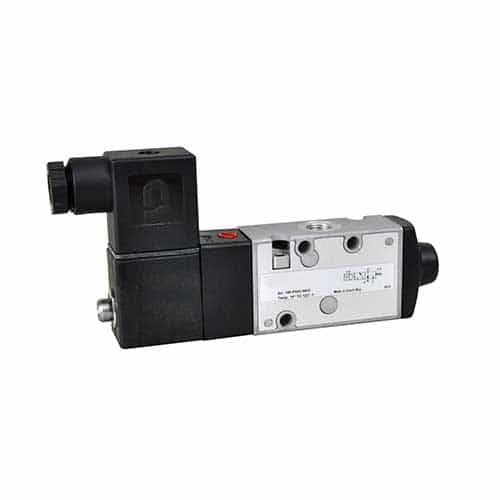

Norgren V61R417A-A318JB Solenoid Actuated Valve with Spring Return, 1/4 in. NPT, 120V, 3/2 Normally Closed

Brand:
Mfr. Model #:
V61R417A-A318JB
KR Part #:
SK0400-120
Weight:
0.64 lbs
Usually Ships in 5 Weeks
MSRP
$142.20
Now Only!
$101.57

Norgren V61R417A-A318JB high flow rate direct control pilot valve. Manifold system features easy assembly. Low power consumption, extensive manual override options. Part of the V61 Series. Port size of 1/4" NPT with a 3/2 operation.




Technical Specifications

Voltage AC: 120
Max Temperature: 122 degrees F
Max PSI: 145
Max GPM: 1.3

Product Description

V61 Series Directional Control Valve

Norgren Solenoid Actuated Valve with Spring Return, 1/4 in. NPT, 120V, 3/2 Normally Closed. The valve is designed to be a low power, high flow piece with a maintenance free arrangement and available fixed length manifold. The media type is compressed air. The actuation is Sol/Spring. This specific part comes from the V61 Series lineup.

Specifications:

  • Voltage AC: 120
  • Max GPM: 1.3
  • Max Temperature: 122 F
  • Min Temperature: 14 F
  • Max PSI: 145
  • Min PSI: 29
  • Actuation: Sol/Spring
  • Function: Normally Closed
  • Operation: 3/2
  • Port Size: 1/4" NPT
  • Media: Compressed Air
