IPTCI UCHA 207-20 L3 Standard Duty Cast Iron Hanger Bearing for 1 1/4 in. Shafts

Brand:
Mfr. Model #:
UCHA 207-20 L3
KR Part #:
UCHA20720-L3
Weight:
2.60 lbs
Out of Stock - Pre-Order Now
MSRP
$93.54
Now Only!
$58.48
Cast iron hanger bearing bored for 1.25" drive shafts. Standard duty with set screw lock. Wide inner race bearing and L3-type seals.
Conveyor & Tunnel

Conveyor & Tunnel




Technical Specifications

Bore: 1 1/4 inch

Product Description

1 1/4" Bore Hang Bearing - L3 Seal

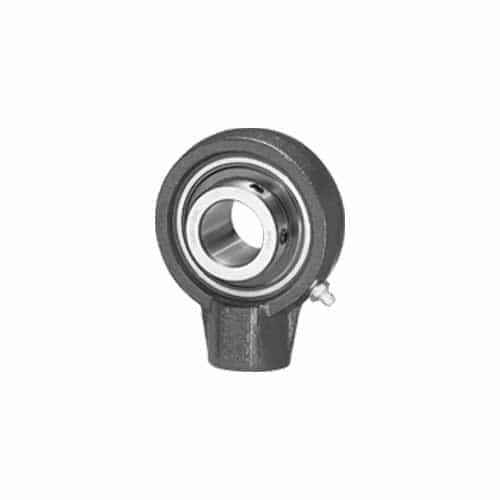

The IPTCI UCHA 207-20 L3 Bearing is a standard duty hanger style bearing with a cast iron housing. Use this bearing to support automatic car wash conveyor shafts with a 1 1/4" diameter.

  • Used with 1 1/4" shafts
  • Cast iron housing
  • Set screw lock
  • L3-type seals
  • Wide inner race bearing
  • Bearing Number: UC207-20
  • Housing Number: HA207
  • Weight: 2.84 lbs.


Drawing Dimensions:

  • Dimension A: 3 5/8"
  • Dimension Bi: 1.689"
  • Dimension C: 0"
  • Dimension D: 3/4"
  • Dimension d: 1 1/4"
  • Dimension H: 2 3/4"
  • Dimension K: PF 3/4-14
  • Dimension L: 1 9/16"
  • Dimension M: 1"
  • Dimension N: .689"
