Lovejoy 68514417981 AL Type Hub with Keyway - 1 in. Bore

Brand:
Mfr. Model #:
AL110 X 1 68514417981
KR Part #:
LJH417981
Weight:
1.15 lbs
Usually Ships in 2 Weeks
MSRP
$115.00
Now Only!
$76.67

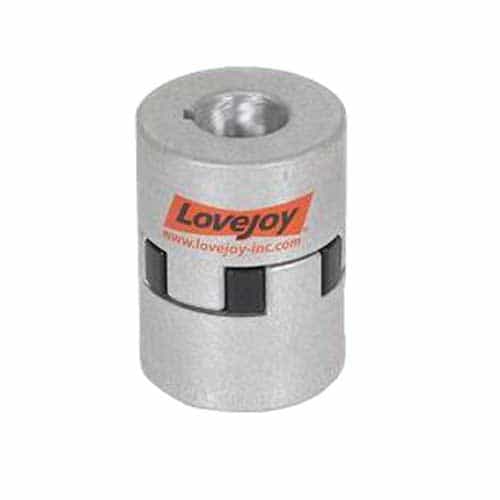

Aluminum construction hub with keyway and 1" bore. NOTE: This product is one hub. A complete coupling includes two hubs and a SOX(NBR) rubber spider. Image shows the complete coupling.




Technical Specifications

Bore: 1 inch
RPM: 5000

Product Description

1" Bore Single Aluminum Hub with Keyway

Lovejoy item #68514417981 is the 1" bore version of the AL110 aluminum hub. Two of these hubs are used with an NBR rubber spider to create a full coupling. A complete Lovejoy coupling is used to connect two driveshafts to transmit power.

Dimensions:

  • Hub Length: 2.56"
  • Length thru Bore: 1.690"
  • Thread: 5/16"-18
  • Bore: 1"
  • Keyway Size (W x D): 1/4" x 1/8"

Specifications:

  • Hub Style: 1
  • Coupling Type: Jaw
  • Material: Aluminum
  • Color: Silver
  • Number of Jaws: 3
  • Bore Size: 1"

Performance Data:

  • Nominal Torque: 792.00 inálb
  • Maximum Speed: 5000 RPM
  • Moment of Inertia (Solid) WR2: 3.531 lbáin_
  • Rated HP at 100 RPM: 1.26 HP
  • Rated HP at 1,200 RPM: 15.12 HP
  • Rated HP at 1,800 RPM: 23.00 HP
  • Rated HP at 3,600 RPM: 45.36 HP
