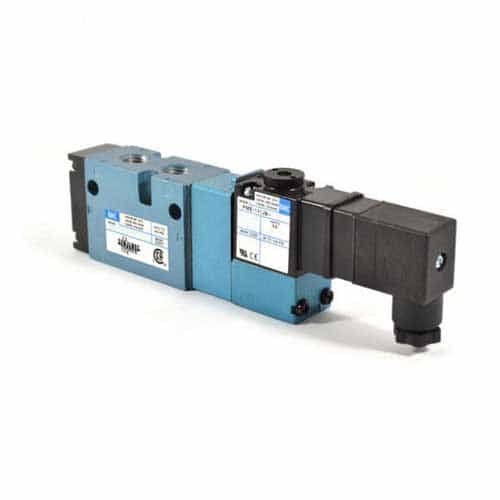

Mac Valves 811C-PM-222JA-152 Single 800 Series Solenoid Valve - 1/4 NPT, 24V, Internal Pilot

Brand:
Mfr. Model #:
811C-PM-222JA-152
KR Part #:
MAC2172
Weight:
1.00 lbs
Call For Availability
MSRP
$132.57
Now Only!
$89.57
Single solenoid valve with internal pilot, locking manual operator, and square connector. 1/4" NPTF, 24 volt 50/60 Hz.



Technical Specifications

Inlet Port: 1/4 inch
Voltage AC: 24

Product Description

24 Volt Internal Pilot Solenoid Valve

The Mac Valves 811C-PM-222JA-152 is part of the 800 series. This 24V single solenoid valve is a two way internal pilot version with locking manual operation, a sqaure connector, and 1/4" female NPT ports.

The MAC 800 Series features Mac Valves' balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations. Mac's balanced spool means the valve can be piped as a 4-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications. The one piece bonded seal spool means longer life and easy maintenance.

Specifications:

  • 24 Volt
  • 50/60 Hz
  • 1/4" NPTF ports
  • Single solenoid
  • Internal pilot
  • Locking manual operator
  • Square connector
  • 1.4 Cv (maximum)
  • 5/2 function

Operational Benefits:

  • Balanced spool, immune to variations of pressure.
  • Short stroke with high flow.
  • The piston (booster) provides maximum shifting forces.
  • Powerful return force thanks to the combination of mechanical and air springs.
  • Bonded  spool with minimum friction, shifting in a glass-like finished bore.
  • Wiping effect eliminates sticking.
  • Pilot valve with balanced poppet, high flow, short and consistent response times.
  • Long service life.
