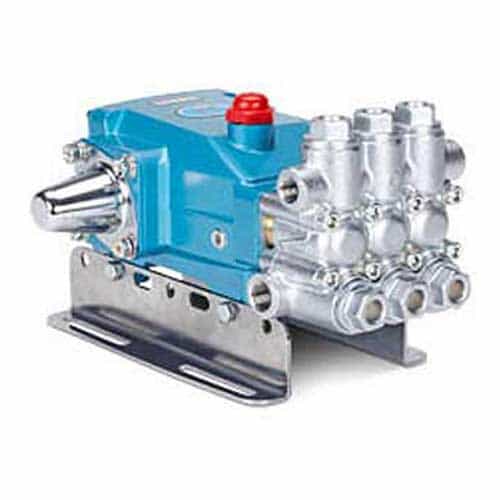

CAT Pumps 5CP6180CSS Triplex Plunger Pump - 8.2 GPM, 1500 PSI, 1750 RPM
Brand:
Mfr. Model #:
5CP6180CSS
KR Part #:
PU5CP6180CSS
Weight:
20.00 lbs
Usually Ships in 2 Weeks
Brass manifold high-pressure pump with three ceramic plungers and Buna-N seals. 1500 PSI, 8.2 GPM, 1750 RPM.
NOTE: This pump does NOT come with oil
Technical Specifications
Bore: 22 millimeter
Crankcase Capacity: 17 ounce
Inlet Port: 1/2 inch
Max PSI: 1500
Max Temperature: 160 degrees F
Max GPM: 8.2
Stroke: 16.5 millimeter
RPM: 1750
Shaft Diameter: 20 millimeter
Product Description
1500 PSI Brass Plunger Pump
The CAT Pumps 5CP6180CSS triplex model is a high quality plunger pump that can achieve up to 8.2 GPM and 1500 PSI. It features three high-quality solid ceramic plunger rods to deliver reliable positive displacement and reciprocating performance. It comes complete with a chrome plated forged brass manifold, stainless steel valves, and Buna-N seals/o-rings. (2) 1/2" x (2) 3/8" female NPT outlets. Use it for water transfer and washes applications at your facility!
Dimensions: 11.01" x 10.0" x 5.82"
Specifications:
- Flow Rate: 8.2 GPM
- Pressure Range: 100-1500 PSI
- Pump RPM: 1750 RPM
- Inlet Pressure Range: Flooded to 60 PSI
- Maximum Liquid Temperature: 160° Fahrenheit
- Crankcase Capacity: 17 oz.
- Inlet Ports (2): 1/2" NPT (F)
- Discharge Ports (2): 3/8" NPT (F)
- Shaft Diameter: .787"
- Bore: .866"
- Stroke: .650"
- Seals: Buna-N
- Weight: 19.9 lbs.
Features:
- Industrial high performance design offers reliability and versatility
- Ultra-compact footprint enhances direct-drive pump-motor unit with bell housing and flexible coupling mount
- Optional direct-drive motor and gearbox requirements
- Press-in seal cases and interchangeable valve assemblies for easy servicing
- Standard NBR seals
- Please note that this pump does NOT come with oil - find official CAT Pumps Oil here.
