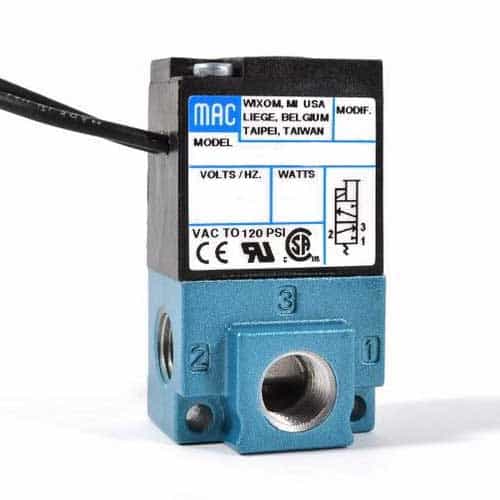

MAC Valves 35 Series Direct Solenoid 3-Way Poppet Valve - 1/8 in. Ports

Brand:
Mfr. Model #:
35A-ACA-DDAA-0BA
KR Part #:
MAC2420
Weight:
2.00 lbs
Call For Availability
MSRP
$43.19
Now Only!
$29.19
Three way solenoid valve with short stroke, balanced poppet, and powerful return spring.



Technical Specifications

Voltage DC: 24
Max Temperature: 120 degrees F
Inlet Port: 1/8 Inch

Product Description

24 Volt Poppet Valve

The Mac Valves 35A-ACA-DDAA-0BA poppet valve is used in car wash applications like vacuums and for tunnel and bay services. From MAC's 35 Series, this is a 24 volt poppet valve with 1/8" NPTF ports.

The MAC 35 Series features direct solenoid operated 3-way poppet valves. They have a short stroke solenoid, a balanced poppet, and powerful return spring. These attributes translate into high shifting forces, fast and consistent response times, and long life. They can be configured as a 3-way or 2-way normally closed or normally open valve.

Specifications and Details:

  • 1/8" NPTF inlet
  • 1/8" NPTF outlet (x2)
  • Max Cv: .17
  • Voltage: 24 VDC
  • Individual inline
  • 18" wire length
  • Flying lead electrical connection
  • Usable with compressed air, inert gas
  • Pressure Range: 0 to 120 PSI
  • Temperature Range: 0° Fahrenheit to 120°Fahrenheit
  • Coil: General purpose class A, continuous duty, encapsulated
  • Flow (at 6 bar, _P=1bar): 1.8 W : 0.08 Cv, 5.4 W : 0.15 Cv
  • Voltage Range: -15% to +10% of nominal voltage
  • Filtration: 40 _

35 Series Features:

  • Patented MACSOLENOID for fastest possible response times.
  • Bonded balanced poppet for high flow, precise repeatability, and consistent operation.
  • Balanced poppet permits versatility in function -may be used as 3-way or 2-way normally open or
  • normally closed and may be used for vacuum, divertor, or selector applications.
  • Extremely high cycle rate capability.
  • Use on lube or non-lube service.
  • Manual overrides as standard.
  • Various solenoid enclosures and plug-in connectors.
  • Optional surge suppression (M.O.V. or Diode) available.
  • Low wattage DC solenoids -down to 1.8 watts.
  • Patented MACSOLENOID -virtually burn-out proof on AC service.
