Multi-Stage Booster Pump with ODP Motor Enclosure

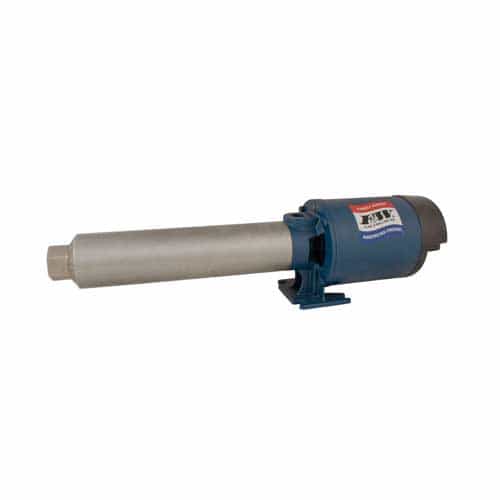

The Flint & Walling PB3506A201 booster pump has a stainless steel body, 1" NPT ports, and and ODP motor enclosure. This single phase pump pump has six stages, generates two horsepower, and has a maximum pressure rating of 85 PSI. Excellent for spraying, water transfer, reverse osmosis, booster services, and various other general purpose pumping.

Dimensions: 9" x 6 1/2" x 25 7/8"

Details and Specifications:

• Horsepower: 2
• Voltage: 120/240 VAC
• Hz: 60 Hz
• Phase: Single
• Outlet Port: 1" NPT
• Inlet Port: 1" NPT
• Maximum Pressure: 85 PSI
• Number of Stages: 6
• Pump Housing Material: Stainless Steel
• Mounting: Horizontal or vertical with inlet down
• Motor RPM: 3450 RPM
• Motor Enclosure: Open drip proof
• Amps: 25/12.5 amps
• Impeller Material: Noryl
• Impeller Type: Closed
• Maximum Case Pressure: 300 PSI
• Maximum Liquid Temperature: 140° Fahrenheit
• Wetted Materials: Noryl,304 SS,CI,316 SS,Carbon,Ceramic,Buna N,BZ
• Motor Type: Capacitor start
• Bearing Type: Ball
• Duty: Continuous
• Motor Frame: NEMA 56J
• Maximum Diameter Solids: Clear water
• Certifications: CSA, CUS, UL Listed
• Warranty: 1 year manufacturers
• Made in the U.S.A.

Applications:

• Car Washes
• Pressure Cleaning
• Spray or Mist Systems
• Jockey Pumps
• Booster Service
• Reverse Osmosis
• Water Circulation
• General Purpose

GPM Levels:

• 48 GPM @ 10 PSI
• 47 GPM @ 20 PSI
• 42.2 GPM @ 40 PSI
• 35.2 GPM @ 60 PSI
• 24 GPM @ 80 PSI
