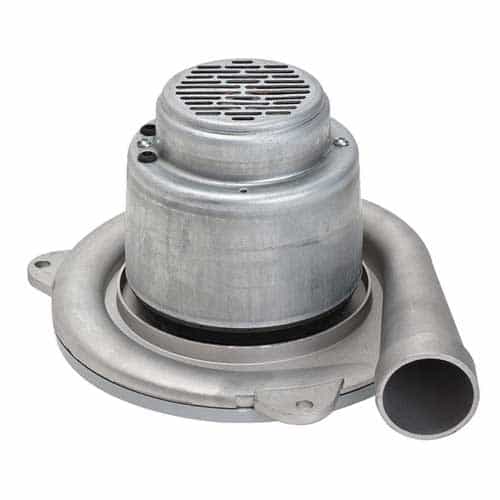

Lamb Ametek 122133-00 Bypass Single Stage 120V Vacuum Motor - 1 Speed, 8.4in. Diameter

Brand:
Mfr. Model #:
122133-00
KR Part #:
VAL2133
Weight:
9.00 lbs
Low Stock Warning
MSRP
$321.05
Now Only!
$205.79
Aluminum one-stage, one-speed vacuum motor. 8.4" diameter and 6" height.



Technical Specifications

Amps: 15.1
Voltage AC: 120

Product Description

120V Industrial Vacuum 1 Stage Motor

Lamb Ametek is a respected and trusted name in car wash vacuums. The Lamb Ametek 122133-00 motor is a single-stage,single-speed, tangential bypass motor with an 8.4" diameter aluminum body.

Replacement Brushes:

  • 8505967-50

Details and Specifications:

  • Tangential bypass discharge
  • 1 blower stage
  • 1 speed
  • Open motor enclosure design
  • CFM @ 2" Orifice: 166
  • 120 volt
  • 60 Hz
  • 15.1 amps
  • Single phase
  • 717 maximum air watts
  • Lug motor mounting type
  • Universal AC/DC motor design
  • All angle motor mounting position
  • Ball bearings
  • 8.4" frame diameter
  • 6" overall height
  • Aluminum mounting brackets
  • Intermittent duty
  • 1500 hour average life
  • 45% nominal efficiency
  • UL recognized
