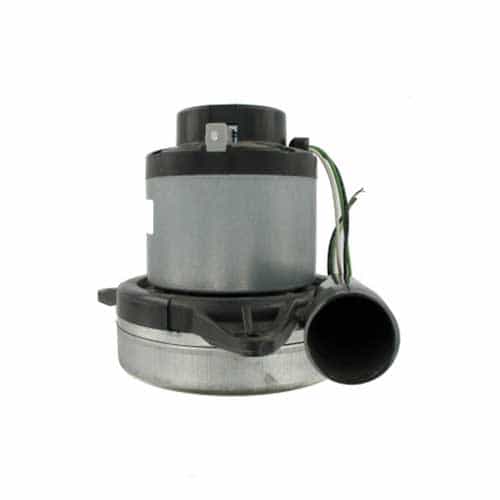

Lamb Ametek 117157-00 Electric 240V 2 Stage Vacuum Motor
Brand:
Mfr. Model #:
117157-00
KR Part #:
VAL7157
Weight:
13.00 lbs
Out of stock - Pre-Order Now!
Single-phase, two-stage motor with a 7.2" body diameter and 240 volt power.
Technical Specifications
Phase: Single
Voltage AC: 240
Product Description
Two Stage Electric Vacuum Motor
A quality vacuum motor for use with clean, dry air applications, the Lamb Ametek 117157-00 motor uses 240 volt power and generates 108 CFM at two inches. This motor works well at low volume car washes and auto detailing shops.
Specifications:
- Two stage
- 240 volts
- 7.2"/183 mm body diameter
- Single speed
- Double ball bearings
- Tangential bypass discharge
- Thermoset fan end bracket
- Thermoset commutator bracket
- UL recognized
- 10 mm shaft and bearing system
- Single phase
- Bypass motor/blower type
- Open enclosure design
- 108 CFM at 2"
- 6.1 maximum amps
- 440 maximum watts
- Lug motor mounting type
- Ball bearings
- Intermittent duty
- 700 hour average life
- Use replacement brush: 33410-3
