MOTOR, AMETEK 24V 3STG 5.7FRAM

Brand:
Mfr. Model #:
119433-14
KR Part #:
VAL9433-14
Weight:
7.00 lbs
Drop Shipped Item
MSRP
$243.06
Now Only!
$166.20

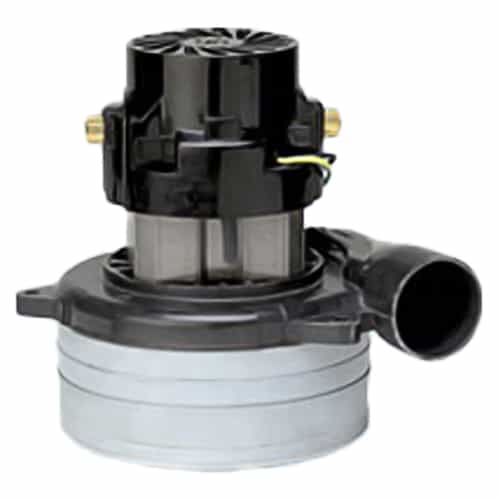

A 5.7-inch frame motor for car wash vacuums. It accepts 24 VAC electrical connections. The motor handles a maximum speed of 12,517 RPM.




Product Description

24 VAC Vacuum Motor

Lamb Ametek 119433-14 is a replacement motor with a tangential discharge for vacuums at your car wash. The frame measures 5.7 inches in diameter to fit the footprint of the original on your vacuum. It is wired for compatibility with 24 VAC electrical connections. The maximum speed this motor can sustain is 12,517 RPM.

Specifications:

  • Manufacturer: Lamb Ametek
  • Product Number: 119433-14
  • Motor Type: Bypass
  • Discharge: Tangential
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 67.6 inches
  • Maximum Air Watts: 142
  • Maximum Air Flow: 69 CFM
  • Motor Speed: 12,517 RPM
  • Voltage: 24 VAC
  • Frame Size: 5.7"
