1/8" Port 3-Way Direct Solenoid Valve

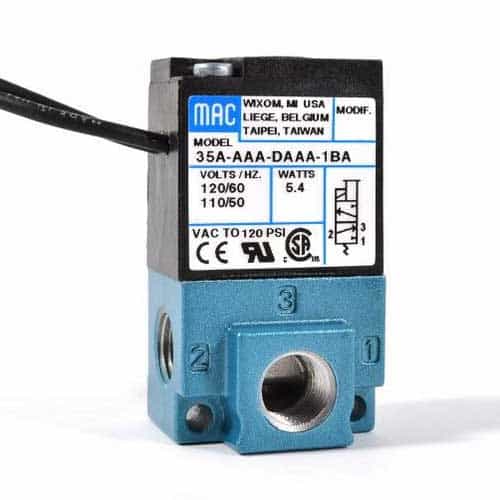

The Mac Valves 35A-AAA-DAAA-1BA solenoid valve is part of the 35 series from Mac Valves. This car wash solenoid valve has 1/8" ports, 120 voltage, and an 18" wire. Has a pressure range from 0-120 PSI and a temperature range from 0-120 degrees Fahrenheit.

Specifications:

• 1/8" inlet

• 1/8" outlet (x2)

• Max Cv: .17

• Voltage: 120V/60Hz, 110V/50Hz

• 18" wire length

• Flying lead electrical connection

• Non-locking manual operator

• Usable with compressed air, vacuum, inert gas

• Pressure Range: 0 to 120 PSI

• Temperature Range: 0° Fahrenheit to 120°Fahrenheit

• Coil: General purpose class A, continuous duty, encapsulated

• Flow (at 6 bar, _P=1bar): 1.8 W : 0.08 Cv, 5.4 W : 0.15 Cv

• Voltage Range: -15% to +10% of nominal voltage

• Filtration: 40 _

35 Series Features:

• Patented MACSOLENOID for fastest possible response times.

• Bonded balanced poppet for high flow, precise repeatability, and consistent operation.

• Balanced poppet permits versatility in function -may be used as 3-way or 2-way normally open or

• normally closed and may be used for vacuum, divertor, or selector applications.

• Extremely high cycle rate capability.

• Use on lube or non-lube service.

• Manual overrides as standard.

• Various solenoid enclosures and plug-in connectors.

• Optional surge suppression (M.O.V. or Diode) available.

• Low wattage DC solenoids -down to 1.8 watts.

• Patented MACSOLENOID -virtually burn-out proof on AC service.
