CAT 7CP6170G1 Plunger Pump with Gearbox - 12 GPM, 1800 PSI

Brand:
Mfr. Model #:
7CP6170G1
KR Part #:
PU7CP6170G1
Weight:
43.23 lbs

Usually Ships in 2 Weeks

MSRP
$4,838.40
Now Only!
$2,570.40

From the 7CP Series, this is a triplex, positive displacement, reciprocating plunger pump with a gearbox. This pump does NOT come with oil.

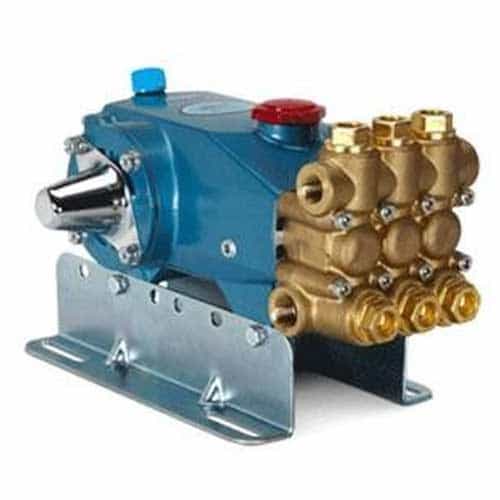

NOTE: Only the pump is shown in the image, but this product DOES include a gearbox.




Technical Specifications

Max GPM: 12
Max PSI: 1800
RPM: 1600
Inlet Port: 3/4 inch
Bore: 22 millimeter
Stroke: 26 millimeter
Shaft Diameter: 24 millimeter
Max Temperature: 140 degrees F
Crankcase Capacity: 38 ounce

Product Description

12 GPM Pump with Gearbox

This CAT 7CP6170G1 7CP Series pump features a forged brass manifold with 304 stainless steel valve assemblies and solid ceramic plungers. It also has standard NBR (Buna-N) seals and O-rings.

This plunger pump comes complete with a gearbox attached for direct mounting to a gas engine.

Dimensions: 13.45" x 12.25" x 6.97"

Details:

  • Triplex design with three plunger rods
  • Gearbox provides direct mounting to a gas engine
  • Forged brass manifold head
  • 100 - 1800 PSI pressure range
  • Max flow: 12 GPM
  • Please note that this pump does NOT come with oil - find official CAT Pumps Oil here.
