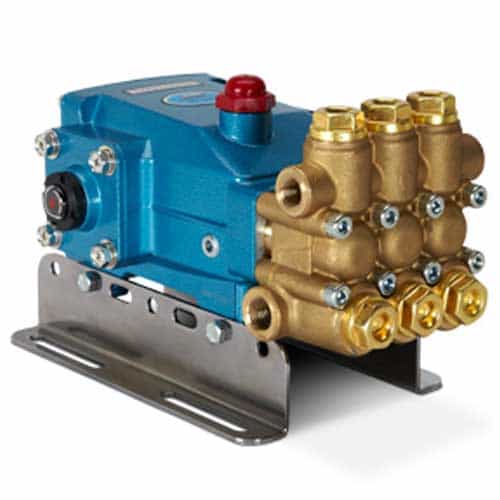

CAT Pump 5CP3110CSS Plunger Pump 3.6 GPM, 3500 PSI

Brand:
Mfr. Model #:
5CP3110CSS
KR Part #:
PU5CP3110CSS
Weight:
21.50 lbs
Usually Ships in 2 Weeks
MSRP
$1,501.00
Now Only!
$768.51
This is a triplex positive displacement, reciprocating plunger pump for your wash facility. Industrial duty capabilities include 3.6 GPM maximum volume, with pressures up to 3500 PSI. Belt drive for precision flow.



Technical Specifications

Max GPM: 3.6
Max PSI: 3500
RPM: 1750
Bore: 16 millimeter
Crankcase Capacity: 17 ounce
Shaft Diameter: 20 millimeter
Stroke: 14.15 millimeter
Inlet Port: 1/2 inch

Product Description

3500 PSI CAT Plunger Pump

The CAT 5CP3110CSS plunger pump is made of forged brass manifold with 304 stainless steel valve assemblies and solid ceramic plungers. Pump features standard NBR (Buna-N) seals and O-rings. It includes a side bubble gauge. Triplex pumps have three plunger rods to deliver smooth, low pulsation flows at different pressures and flow rates.

Dimensions: 10.9" x 8.7" x 5.8"

Features:

  • Belt drive type
  • Brass material for durability
  • Stainless steel valve assemblies

Specifications:

  • Maximum Volume: 3.6 GPM
  • Maximum Pressure: 3500 PSI
  • Maximum Temperature: 160° F
  • Inlet Port: (2) 1/2" NPT-F
  • Outlet Port: (2) 3/8" NPT-F
