CAT 740 Plunger Pump 2.8 GPM, 5000 PSI

Mfr. Model #:
KR Part #:
28.45 lbs
Usually Ships in 2 Weeks
Now Only!
Cat Pumps triplex positive displacement plunger pump boasts durability and reliability with a tough, forged brass manifold, solid ceramic plungers, and standard NBR (Buna-N) seals and o-rings.

Technical Specifications

Bore: 14 millimeter
Stroke: 15 millimeter
Shaft Diameter: 24 millimeter
RPM: 1700
Max Temperature: 160 degrees F
Max PSI: 5000
Max GPM: 2.8
Inlet Port: 1/2 inch
Crankcase Capacity: 25 ounce

Product Description

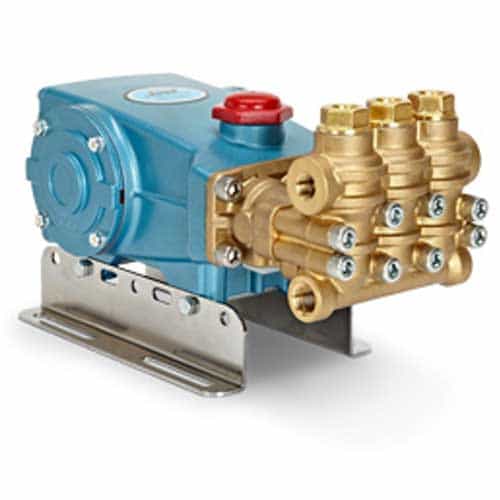

CAT Pumps 740 7 Frame Plunger Pump

Featuring a triplex design for high efficiency performance and low pulsation, CAT Model 740 Plunger Pump is an excellent choice for any application!

Dimensions: 14.04" x 8.23" x 6.47"

Dimensions (with Gearbox): 14.04" x 10.76" x 6.53"

  • V-Packings lubricated and cooled while being pumped via liquid to maintain high performance
  • Added protection against external leaks with the help of pre-set, low-pressure seals requiring no extra packing adjustment
  • True wear surface and seal durability due to high-density, polished, concentric plungers
  • Stainless Steel valve
  • Standard NBR Seals: FPM - .0110, High Temperature - 200°F - .3400 (Intermittent Run Duty)
