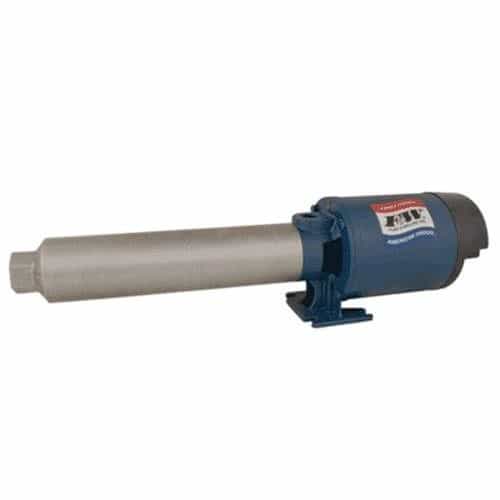

Flint and Walling PB1014A101 Multi-Stage Booster Pump 14 Stage, 1 HP, 1 Phase, 183 PSI

Brand:
Mfr. Model #:
PB1014A101
KR Part #:
FWPB1014A101
Weight:
50.00 lbs
GTIN:
054757005528
In Stock
MSRP
$1,236.00
Now Only!
$737.97
Multi-stage open dripproof pump. Reaches maximum pressure of 183 PSI. Inlet and outlet diameters measure 3/4 inches.



Product Description

Pressure Boosting Pump

Great for use in applications such as pressure-boosting systems, reverse osmosis, and water circulation. This is a multi-stage open dripproof booster pump. The pump reaches a maximum of 183 PSI and produces 1 horsepower. Inlet and outlet measure 3/4-inch in diameter.

Specifications:

  • Item: Multi-Stage Booster Pump
  • Booster Pump Type: Multi-Stage Booster Pump
  • HP: 1 hp
  • Voltage: 120/240V AC
  • Phase: 1
  • Outlet Size: 3/4 in NPT
  • Inlet Size: 3/4 in NPT
  • Max. Pressure: 183 psi
  • Number of Stages: 14
  • Housing Material: Cast Iron
  • Motor Enclosure: Open Dripproof
  • Pump Mounting Position: Horizontal or Vertical with Inlet Down
  • Amps: 18/9
  • Impeller Material: Noryl
  • Impeller Type: Closed
  • Max. Case Pressure: 300 psi
  • Max. Liquid Temperature: 140 Degrees F
  • Seal Material: Stainless Steel, Buna N and Carbon/Ceramic
  • Wetted Materials: Noryl,304 SS, CI,316 SS, Carbon, Ceramic, Buna N, BZ
  • Motor Type: Capacitor-Start
  • Agency Compliance: CSA, CUS, UL Listed
  • Manufacturer's Warranty Length: 1 yr
  • Includes: Kit/Motor Cover Vertical
  • Length: 27 1/4 in
  • Width: 6 1/2 in
  • Height: 9 in
  • Bearing Type: Ball
  • Duty: Continuous
  • Hz: 60
  • Motor Ambient Temp. Rating: 65 Degrees C
  • Suction Lift: 0 ft
  • GPM @ 40 PSI: 14.5
  • GPM @ 60 PSI: 13.4
  • GPM @ 80 PSI: 12.3
  • GPM @ 100 PSI: 11.2
  • GPM @ 120 PSI: 9.8
  • GPM @ 140 PSI: 8
  • GPM @ 160 PSI: 6.3
  • GPM @ 180 PSI: 3.3
  • Frame: NEMA 56J
  • Max. Dia. Solids: Clear Water
  • Motor RPM: 3,450 RPM
