Mosmatic 59.453 High Pressure Self-Rotating Swivel Rotary Union DYT - 90 Degree, 3/8 NPTF, NPTM, 5000 PSI, 2000 RPM
Brand:
Mfr. Model #:
59.453
KR Part #:
SWM59453
Weight:
3.25 lbs
Usually Ships in 2 Weeks
This is a 90-degree swivel engineered for high pressures. Features a quadruple bearing system. Made with stainless-steel.
Technical Specifications
RPM: 2000
Max Temperature: 250 degrees F
Max PSI: 5000
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Product Description

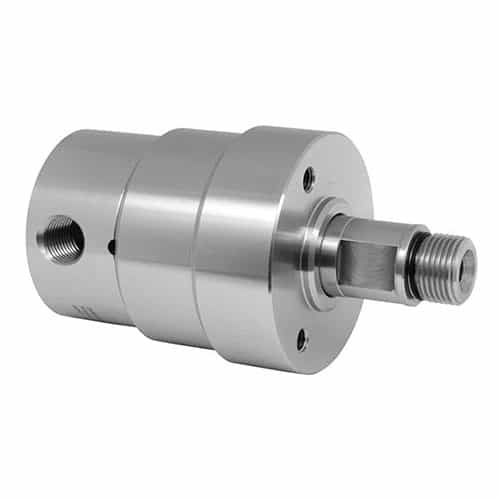

Stainless Steel Rotary Union
This rotary union is designed for high precision and quality in high pressure applications. Operates using a quadruple bearing system. Swivel is crafted using stainless-steel. Used in applications such as high pressure, thrust, radial force, self-rotation, and surface cleaners.
Specifications:
- G1: 3/8" NPTF
- G2: 3/8" NPTM
- NW: 1/4"
- SW1: 0.63
- L1: 2.83
- L2: 4.29
- L3: 0.43
- Weight: 53.7 Oz
- Pressure: 5000 PSI
- Temperature: 250 °F
- RPM: Max. 2,000 Rpm)
- Body: Stainless Steel
- Inner Part: Stainless Steel
- Seal: Carbide
- Bearing: 2x Radial Ball Bearings, 2x Thrust Ball Bearing
- Throughput: Ph 3-12
- Medium: Filtered 10 Microns, Compressed Air (290 Psi)
Features:
- Quadruple Bearing System
- High Precision And Quality
- Seal Failure Warning, Through Weep Holes
- Sealed Stainless Steel Bearings
- Carbide Seals
Applications:
- High Pressure/Rpm
- Thrust
- Radial Force
- Self-Rotating
- Surface Cleaners
- Parts Washer
