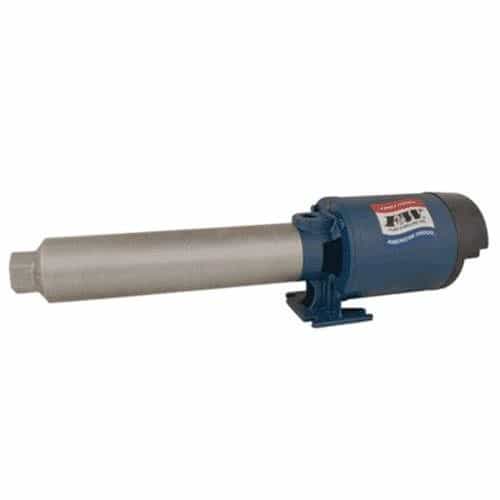

Flint and Walling PB1016S151 Open Dripproof Multi-Stage Booster Pump 16-Stage 120/240V AC

Brand:
Mfr. Model #:
PB1016S151
KR Part #:
FWPB1016S151
Weight:
54.00 lbs
GTIN:
054757005610
Availability:
5
Low Stock Warning
MSRP
$2,210.00
Now Only!
$1,196.35
Great for reverse osmosis applications in car washes. Utilizes an open drip-proof motor housing that is crafted in stainless steel. Pump can be mounted horizontally or vertically.



Technical Specifications

Horsepower: 1.5
Voltage AC: 120/240
Phase: Single
Outlet Port: 3/4 inch
Inlet Port: 3/4 inch
Max PSI: 211
Max Temperature: 140 degrees F

Product Description

Open Dripproof 16-Stage Booster Pump

Multistage booster pump with 16 stages. Great for reverse osmosis, and other high pressure and temperature applications found in car wash environments. Pump's housing material is stainless-steel and the impeller material is noryl. Features an open drip-proof motor enclosure. Pump can be mounted horizontally or vertically with the inlet down.

Specifications:

  • Booster Pump Type: Multi-Stage Booster Pump
  • HP: 1 1/2 hp
  • Voltage: 120/240V AC
  • Phase: 1
  • Outlet Size: 3/4 in NPT
  • Inlet Size: 3/4 in NPT
  • Max. Pressure: 211 psi
  • Number of Stages: 16
  • Housing Material: Stainless Steel
  • Motor Enclosure: Open Dripproof
  • Pump Mounting Position: Horizontal or Vertical with Inlet Down
  • Amps: 21/10.5
  • Impeller Material: Noryl
  • Impeller Type: Closed
  • Max. Case Pressure: 300 psi
  • Max. Liquid Temperature: 140 Degrees F
  • Seal Material: Stainless Steel, Viton and Carbon/Ceramic
  • Wetted Materials: Noryl,304 SS,316 SS,Carbon,Ceramic,Viton,BZ
  • Motor Type: Capacitor-Start
  • Manufacturers Warranty Length: 1 yr
