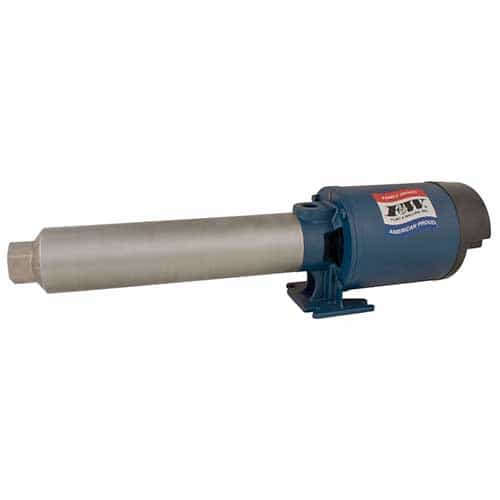

Flint and Walling PB0516A071 Multi-Stage Booster Pump - 3/4 HP, 1 Phase, 120/240 VAC

Brand:
Mfr. Model #:
PB0516A071
KR Part #:
FWPB0516A071
Weight:
46.00 lbs
GTIN:
054757045456
Availability:
1
Low Stock Warning
MSRP
$1,307.01
Now Only!
$792.00
These booster pumps are designed to increase water pressure from city mains as well as private cisterns. Get a great deal and great performance when you choose the Flint & Walling PB0516A071 water booster pump!



Technical Specifications

RPM: 3450
Max GPM: 9.9
Max PSI: 175
Voltage AC: 120/240
Phase: Single
Max Temperature: 140 degrees F
Inlet Port: 3/4 inch
Horsepower: 3/4

Product Description

Drip-Proof Pump

The Flint & Walling multi-stage booster pump is a great choice when you need to increase pressure on a city water main line, cistern, or private pond source. You can also use it for pressure cleaning, spraying, misting, jockey pumps, RO systems, water circulation, and other general pumping applications!

This pump is conveniently self-priming to 10 feet when filled with water and a foot valve is in place. Plus, you can rest assured that it will last for a long time! The 22W713 features reliable Flint & Walling construction including a stainless steel housing.

Please note that this product is only for use in clear water pumping with no suspended solids. It may be mounted horizontally or vertically with the inlet down.

Dimensions: 27" x 6.5" x 9"

  • 3/4 HP pump
  • Single phase
  • 16 stage
  • Maximum pressure: 175 PSI
  • Maximum case pressure: 300 PSI
  • Maximum liquid temperature: 140° F
  • Maximum flow: 9.9 GPM at 10 PSI
  • Maximum speed: 3450 RPM
  • Stainless steel housing
  • Open drip proof enclosure
  • Closed noryl impeller
  • Stainless steel, Buna N, and carbon/ceramic seals
  • Ball bearings
  • Clear water pumping only
  • Flint & Walling item #PB0516A071
