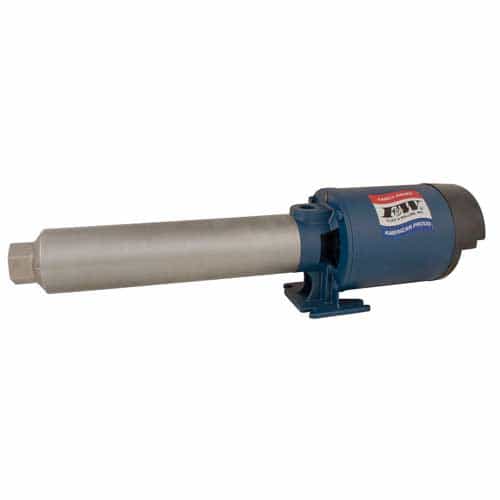

Flint and Walling PB1016A153 Multi-Stage Booster Pump 16 Stage, 1 1/2 HP, 3 Phase, 211 PSI

Brand:
Mfr. Model #:
PB1016A153
KR Part #:
FWPB1016A153
Weight:
42.00 lbs
GTIN:
054757005597
Availability:
4
Low Stock Warning
MSRP
$1,460.01
Now Only!
$846.80

This is a multi-stage, open, drip-proof, Flint & Walling water pump. This model reaches a maximum pressure of 211 PSI. Inlet and outlet diameters measure 3/4 inches.




Product Description

Multi-Stage Booster Pump - 1 1/2 HP

Flint & Walling water pumps are designed for use in applications such as pressure-boosting systems, reverse osmosis, and water circulation. This is a multi-stage open drip-proof booster pump. Booster pump increases pressure in your water systems. Stainless-steel housing construction. Noryl crafted closed impeller. The pump reaches a maximum of 211 PSI and produces 1 1/2 horsepower. Mounting can be vertical or horizontal with the inlet down. Inlet and outlet measure 3/4-inch in diameter. Maximum liquid temperature is 140 degrees Fahrenheit.

Specifications:

  • Item: Multi-Stage Booster Pump
  • Booster Pump Type: Multi-Stage Booster Pump
  • HP: 1 1/2 hp
  • Voltage: 208 to 240/480V AC
  • Phase: 3
  • Outlet Size: 3/4 in NPT
  • Inlet Size: 3/4 in NPT
  • Max. Pressure: 211 psi
  • Number of Stages: 16
  • Housing Material: Stainless Steel
  • Motor Enclosure: Open Dripproof
  • Pump Mounting Position: Horizontal or Vertical with Inlet Down
  • Amps: 5.7/2.85
  • Impeller Material: Noryl
  • Impeller Type: Closed
  • Max. Case Pressure: 300 psi
  • Max. Liquid Temperature: 140 Degrees F
  • Seal Material: Stainless Steel, Buna N and Carbon/Ceramic
  • Wetted Materials: Noryl,304 SS,CI,316 SS,Carbon,Ceramic,Buna N,BZ
  • Agency Compliance: CSA, CUS, UL Listed
  • Manufacturer's Warranty Length: 1 yr
  • Includes: Kit/Motor Cover Vertical
  • Length: 29 3/4 in
  • Width: 6 1/2 in
  • Height: 9 in
  • Bearing Type: Ball
  • Duty: Continuous
  • Hz: 60/50
  • Motor Ambient Temp. Rating: 65 Degrees C
  • Suction Lift: 0 ft
  • GPM @ 40 PSI: 14.7
  • GPM @ 60 PSI: 13.8
  • GPM @ 80 PSI: 12.9
  • GPM @ 100 PSI: 11.9
  • GPM @ 120 PSI: 10.8
  • GPM @ 140 PSI: 9.7
  • GPM @ 160 PSI: 8.2
  • GPM @ 180 PSI: 6.6
  • GPM @ 200 PSI: 4.3
  • Frame: NEMA 56J
  • Max. Dia. Solids: Clear Water
  • Motor RPM: 3,450

Applications:

  • Low pressure car wash applications
  • Farming/agriculture
  • Water treatment
  • Industrial water circulation
  • Filtering and reverse osmosis
