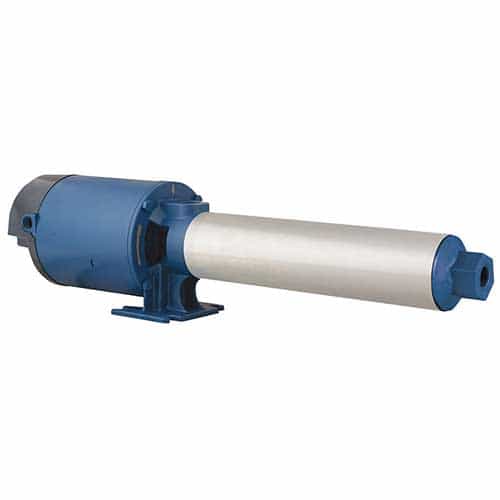

Flint and Walling PB1914A203 Booster Pump - 2 HP, 3 Phase, 14 Stage, 208-240/480 VAC, 3/4 in. FNPT, 27 GPM

Brand:
Mfr. Model #:
PB1914A203
KR Part #:
FWPB1914A203
Weight:
57.60 lbs
GTIN:
054757043803
Availability:
3
Low Stock Warning
MSRP
$1,976.00
Now Only!
$1,069.68
Booster pump increases pressure from mains or pumps from other sources. Features 304 SS radial bearing and closed Noryl impeller, along with Carbon/Ceramic and Buna-N seals. 3/4" inlet and outlet, 27 GPM, 2 HP, and 14 stage.



Technical Specifications

Voltage AC: 208-230/460
Phase: 3
Max GPM: 27
Max PSI: 190
Phase: Three
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Horsepower: 2

Product Description

Flint and Waller Open Dripproof Multi-Stage Booster Pump

Booster pump for use in applications such as pressure-boosting systems, reverse osmosis, and water circulation. Features stainless steel housing material, with stainless steel, Buna-N, and carbon/ceramic seal materials for durability and reliability. Closed Noryl impeller provides up to 27 GPM flow at 10 PSI. For use with clear water only. Ready for continuous duty, in ambient temperatures up to 149 F (65 C). CSA, CUS, and UL listed.

Specifications

  • Horsepower: 2 HP
  • Stages: 14 stage
  • Voltage: 208-240/480VAC
  • Phase: 3 Phase
  • Maximum Output Pressure: 190 PSI
  • Maximum Temperature: 140 F
  • Maximum Flow: 27 GPM @ 100 PSI
