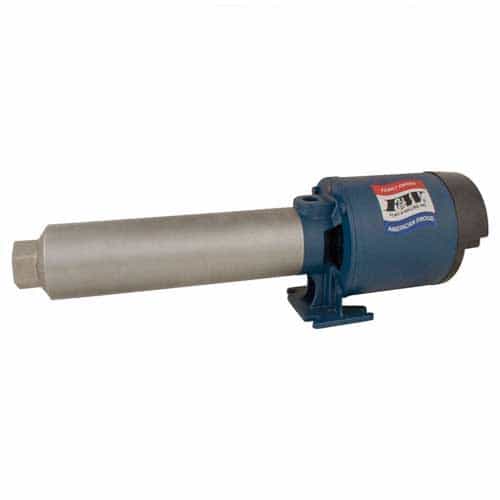

Flint and Walling PB2714A301 Multi-Stage Booster Pump - 14 Stage, 1in. NPT Inlet, 3 HP, 1 PH

Brand:
Mfr. Model #:
PB2714A301
KR Part #:
FWPB2714A301
Weight:
61.40 lbs
GTIN:
054757041229
Availability:
3
Low Stock Warning
MSRP
$1,795.01
Now Only!
$1,071.72
Provide the power to boost your pumping to new levels! High pressure washing is more effective with Flint & Walling Booster Pumps.



Technical Specifications

Amps: 13.5
Horsepower: 3
Inlet Port: 1 inch
Max PSI: 187
Phase: Single
Voltage AC: 240

Product Description

One Phase 3 HP Multi-Stage Pump

Raise the power of the high pressure pumping system at your car wash with this Flint & Walling PB2714A301 multi-stage booster pump. This 14 stage pump generates 3 horsepower and has single phase operation. This American made pump is built with quality materials including a cast iron housing, heavy duty ball bearings, and stainless steel seals.

Specifications:

  • Three horsepower
  • 240VAC
  • One phase
  • 13.5 amps
  • 60 Hz
  • 187 psi max pressure
  • 1" NP inlet and outlet
  • Cast iron housing material
  • Open, dripproof motor enclosure
  • Replaceable pump cartridge has 304 SS radial bearing and Noryl impeller.
  • Continuous-duty dual-voltage motor with shielded ball bearings.
  • Self-priming to 10 ft. when the pump housing and suction line is filled with water and a foot valve is used.
  • Bearing type: ball
  • Made in the U.S.A.
