Ametek Lamb 116336-01 2-Stage 1 Speed
Brand:
Mfr. Model #:
116336-01
KR Part #:
VAL6336
Weight:
6.38 lbs
GTIN:
814338021909

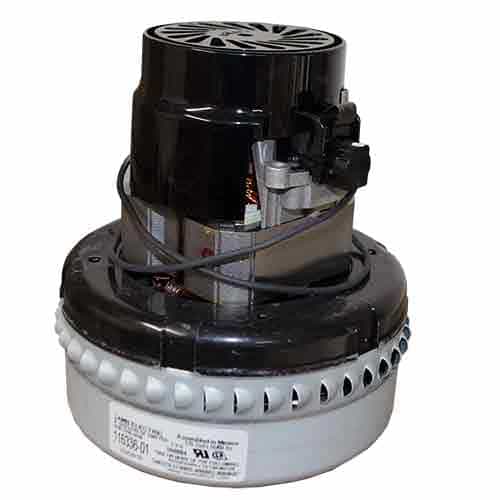

A commercial car wash vacuum motor with an 8 amp current, 2 stages, and 1 speed. 5.7 Inch fan size.
Technical Specifications
Phase: Single
Amps: 8
Voltage AC: 120
Watts: 1050
Product Description
High Amp Car Wash Vacuum Motor
An excellent motor for central vacuums and high-volume commercial car wash vacuum cleaners! The Lam-Ametek 116336-01 peripheral bypass motor has an 8 amp current and two blower stages.
Specifications:
- 5.7" diameter bypass
- 8.0 amp
- 120 volts
- 1050 watt
- 60/50 Hz
- Blower stages: 2
- Speeds: 1
- Peripheral bypass motor
- UL/CSA Recognized
- NEMA Enclosure Type: open drip proof
- Ball-style bearings
- Frame material: steel
- Mounting Brackets: Thermoset
- Duty: Intermittent
- Maximum Air Watts: 274
