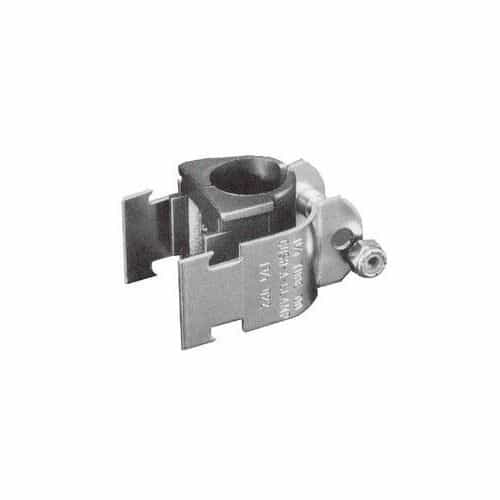

Cushioned, Channel Mounting Clamps

Cush-a clamps are ideal for multiple line runs. These channel mount clamps absorb shock and vibration, reduce unwanted noise and prevent galvanic corrosion.

The clamp features a unique shoulder stud which is securely fastened to one clamp half. Steel clamps for tube sizes up to 1-38 feature a controlled squeeze design which eliminates over-tightening and rotation while a nylon-insert nut assures a positive lock.

The cushion is made from a thermoplastic elastomer, built tough to withstand the effects of most oils, chemicals and industrial cleaning compounds, as well as temperatures from -50F to 275F. Interlock edges and channel locator legs ensure that the cushion remains in place.

Specifications:

• Gold electro galvanized steel & thermoplastic elastomer
• For 3/8" Tube, or 1/4" Copper Pipe
• Temperature range: -50 to 275 degrees F
