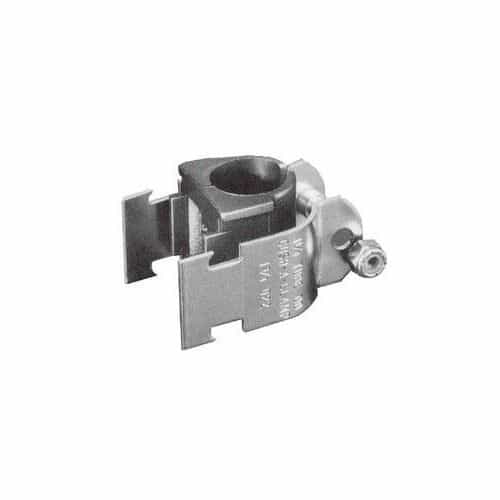

ZSI Inc. 014NS018 Stainless Steel Cush-A-Clamp For 1/2in. Pipe

Brand:
Mfr. Model #:
014NS018
KR Part #:
CLS14NS018
Weight:
0.18 lbs
In Stock
MSRP
$26.98
Now Only!
$22.02

Cush-A-Clamp channel mounts fit any standard 1-5/8 wide channel. Assembly consisting of steel clamp with locknut and thermoplastic elastomer cushion. Not for use with copper pipe.

Prep 65

Prop 65




Technical Specifications

Max Temperature: 275 degrees F
Min Temperature: -50 degrees F

Product Description

1/2 in Pipe Cush-A-Clamp Stainless

Cush-A-Clamp channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise and preventing galvanic corrosion. These 2 part mounting clamps feature a unique shoulder stud which is securely fastened to one clamp half and controlled squeeze design which eliminates over-tightening and rotation. A nylon-insert nut assures a positive lock. The thermoplastic elastomer cushion withstands the effects of most oils, chemicals and industrial cleaning compounds and temps up to 275 F. Interlock edges and channel locator legs ensure that the cushion remains in place.

Dimensions:

Specifications:

  • Max Temp: 275 F
  • Torque: 40 lbs.
  • 1/4in. nut
  • Material: 304 Stainless Steel & Thermoplastic Elastomer
  • For 1/2" pipe, ¾" copper pipe or 7/8" tubing

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
