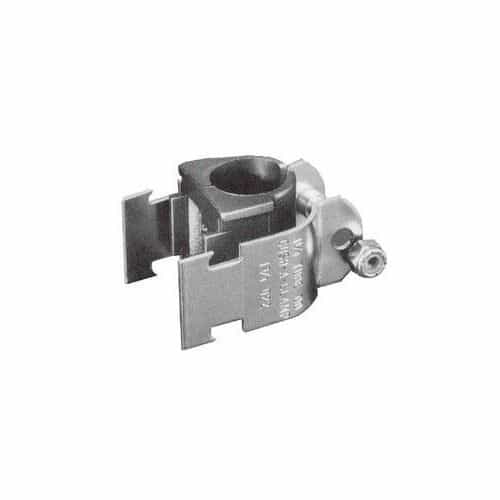

ZSI Inc. 014N018 Cush-A-Clamp for 1/2in. Tubing or Pipe

Brand:
Mfr. Model #:
014N018
KR Part #:
CL14N018
Weight:
0.23 lbs
In Stock
MSRP
$7.88
Now Only!
$5.94
A channel mounted pipe clamping system that fits 1/2" nominal piping. Designed to reduce noise and vibration. Made with zinc plated steel to resist corrosion.

Note: Not For Copper Pipe
Prep 65

Prop 65




Technical Specifications

Max Temperature: 275 degrees F
Min Temperature: -50 degrees F

Product Description

1/2" - Cushioned Pipe Clamp

The ZSI Inc 014N018 is a channel mounted clamping system that is designed to absorb shock and vibration to reduce noise levels in your car wash. It is compatible with 3/4 inch nominal piping. The clamp fits any standard channel that is 1-5/8" wide. Constructed with zinc plated steel to prevent corrosion in wet environments like a car wash.

Specifications:
  • Item: Cushioned Clamp
  • Type: Channel Mounted
  • Channel Compatibility: 1-5/8" wide
  • Pipe Size Nominal (In.): 1/2"
  • Clamp Material: 304 Stainless Steel
  • Cushion Material: Thermoplastic Elastomer
  • Maximum Temperature: -50F to 275F.
  • Dimensions:
    • A: 0.84" (21mm) - Outer Diameter
    • B: 1.29" (33mm)
    • C: 0.58" (15mm)
    • D: 1.82" (46mm)
Features:
  • Cush-A-Clamp - Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise, and preventing galvanic corrosion. Cush-A-Clamp fits any standard 1-5/8" wide channel.
  • Assembly consisting of steel clamp with locknut and thermoplastic elastomer cushion. All parts are marked for easy identification and packaged for small lot or bulk use.
  • The Clamp - Features a unique shoulder stud which is securely fastened to one clamp half. Steel clamps for tube sizes up to 1-38 have the Controlled Squeeze design which eliminates over-tightening and rotation while a nylon-insert nut assures a positive lock.
  • The Cushion - Made from a thermoplastic elastomer, it's built tough to withstand the effects of most oils, chemicals and industrial cleaning compounds, in temperatures from -50 degrees Fahrenheit to 275 degrees Fahrenheit. Interlock edges and channel locator legs ensure that the cushion remains in place.

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
