CAT Pumps 4DX29GUIF Triplex Plunger Pump with Unloader and Chemical Injector, 2.9 GPM, 2600 PSI, 3450 RPM

Brand:
Mfr. Model #:
4DX29GUIF
KR Part #:
PU4DX29GUIF
Weight:
10.70 lbs

Usually Ships in 2 Weeks

MSRP
$879.90
Now Only!
$467.45

Compact direct-drive triplex plunger pump, featuring a brass manifold. Built with high-pressure seals and concentric solid ceramic plungers for a true wear surface and extended seal life. High quality economically priced, intermittent-duty gas pressure washer pump.

NOTE: This pump does NOT come with oil

Pressure Washing

Pressure Washing




Technical Specifications

Max PSI: 2000
Bore: 16 millimeter
Crankcase Capacity: 8.5 ounce
Inlet Port: 3/8 inch
Max Temperature: 140 degrees F
Stroke: 1.9
Max GPM: .3
RPM: 3450
Shaft Diameter: 3/4 inch

Product Description

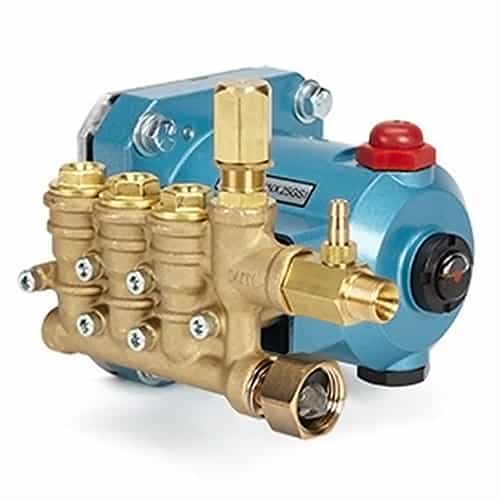

CAT Compact Direct Drive Plunger Pump 2.9GPM 2600PSI

The CAT Pumps 4DX29GUIF Triplex Plunger Pump is a compact, reliable pump featuring an integral regulating unloader and fixed chemical injector. Triplex plunger design provides a smooth liquid flow at mid-range PSI. Well suited for intermittent duty, features a garden hose inlet connection and standard NBR (Buna-N) seals and O-rings.

Dimensions: 8.03" x 7.72" x 6.29"

Features:

  • Compact flange mount permits easy, direct mounting to most gas engines.
  • Integral regulating unloader with built-in bypass ensures system pressure control and pump protection.
  • Fixed chemical injector aids in cleaning flexibility.
  • Swivel garden hose fitting provides easy inlet connection.
  • Includes crankcase oil.
  • Pump comes standard with NBR seals.
  • Please note that this pump does NOT come with oil - find official CAT Pumps Oil here.

Specifications:

  • Maximum Flow: 2.9 GPM
  • Maximum Pressure: 2600 PSI
  • Maximum Speed: 3450 RPM
  • Maximum Fluid Temperature: 140° F
  • Inlet Port: 3/4" GHF
  • Discharge Port: 3/8" NPT-M
  • Bore: 16 millimeter
  • Stroke: 5.9 millimeter
  • Shaft Diameter: 19 millimeter (3/4")
  • 14 oz crankcase oil capacity

Applications:

  • Car Washes
  • Prep Stations
  • Auto Detailing
  • General Exterior Cleaning
