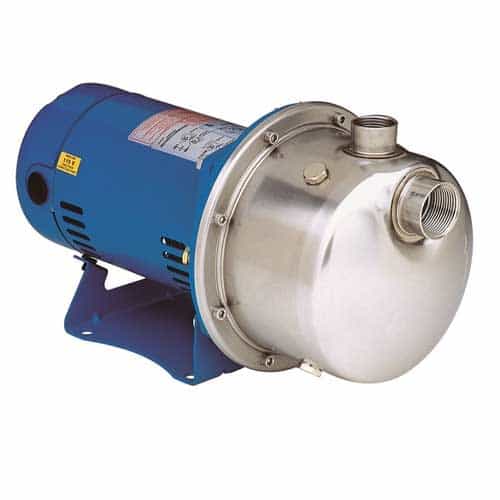

Goulds LB1012TE Single Phase Booster Pump LB Series with TEFC Motor Enclosure - 3500 RPM, 20 GPM, 85 PSI, 1HP
Brand:
Mfr. Model #:
LB1012TE
KR Part #:
GLLB1012TE
Weight:
45.00 lbs
GTIN:
697666184382
Out of stock - Pre-Order Now!
Features NPT threads inlet and outlet threads. Use for liquid transfer and pressure boosting systems. Corrosion resistant stainless-steel parts.
Technical Specifications
RPM: 3500
Outlet Port: 1 inch
Horsepower: 1
Max PSI: 85
Max GPM: 20
Phase: Single
Inlet Port: 1 1/4 inch
Product Description
Centrifugal Jet Pump
This is a high headed water boosting pump designed to replace smaller booster sets and heads up to 190 feet. Both the suction and discharge connections feature NPT threads. Pump is engineered for liquid transfer and boosting applications. Stainless-steel constructed components resist corrosion.
Specifications:
- Series: LB
- Product Type: Centrifugal Jet Pump
- Application: Liquid Transfer/Booster
- Horsepower: 1 HP
- Voltage: 115-230 Volts
- Phase: 1
- Stages: 1
- Frequency: 60 Hz
- Speed: 3500 RPM
- Suction Connection: 1-1/4_ NPT
- Discharge Connection: 1_ NPT
- Maximum Flow: 18 GPM Max
- Maximum Head: 190 Ft Max Head
- Pump End Casing: 304 Stainless Steel
- Impeller Diameter: 5.25_
- Impeller Material: Noryl
- Motor Enclosure: TEFC
- Overload Protection: Yes
- Maximum Working Pressure: 85 PSI
- Maximum Temperature: 140°F
