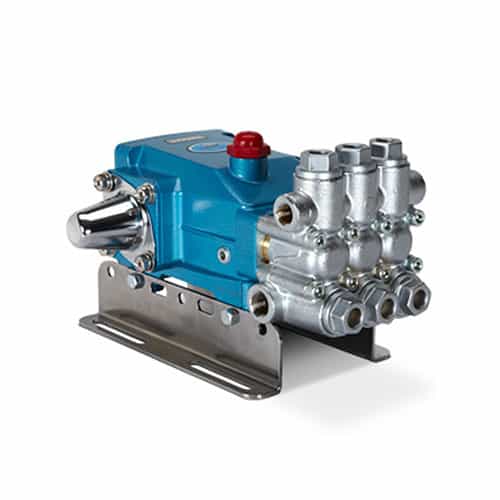

CAT Pumps 5CP6120RS High Temperature Plunger Pump 1400 RPM, 1600 PSI, 190 F

Brand:
Mfr. Model #:
5CP6120RS
KR Part #:
PU5CP6120RS
Weight:
22.00 lbs
Usually Ships in 2 Weeks
MSRP
$1,798.00
Now Only!
$920.58
Reaches 1400 RPM and 1600 PSI. Uses a special blend of PFTE for low and high-pressure seals. Great for performing at high temperatures.



Technical Specifications

Bore: 20 millimeter
Crankcase Capacity: 17 ounce
Inlet Port: 1/2 inch
Max PSI: 1600
Max GPM: 6
Shaft Diameter: 20 millimeter
Stroke: 18 millimeter
RPM: 1400
Max Temperature: 160 degrees F

Product Description

CAT High Temperature Application Plunger Pump

Pump runs at 1400 RPM and can reach pressures up to 1600 PSI. Can work in temperatures of 190° F. Design for high industrial performance. Easy servicing is enabled through the pump featuring press-in seal cases and interchangeable valve assemblies. NBR seals are standard, options for temperature and chemical compatibility are available. Footprint is ultra-compact.

Specifications:

  • Flow: 6.0 GPM
  • Pressure Range: 100 to 1600 PSI
  • RPM: 1400 RPM
  • Bore: 0.787"
  • Stroke: 0.709"
  • Weight: 19.9 lbs.

Features:

  • Industrial high-performance design offers reliability and versatility.
  • Ultra-compact footprint enhances direct-drive pump-motor unit with bell housing and flexible coupling mount.
  • Optional direct-drive motor and gearbox requirements.
  • Press-in seal cases and interchangeable valve assemblies for easy servicing.
  • Standard NBR seals with alternative options for temperature and chemical compatibility.
  • FPM - .0110
  • EPDM - .0220
  • High Temp, 190° F - .3000
  • High Temp, 200° F - .3400 (Intermittent Duty)
