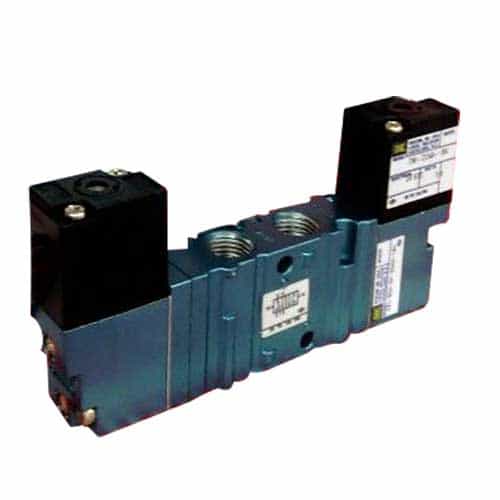

Mac 421A-B0A-DM-DDA Double Solenoid Valve - 1/4in. 24VDC

Brand:
Mfr. Model #:
421A-B0A-DM-DDAJ-1JB
KR Part #:
MAC2335
Weight:
0.50 lbs
Call For Availability
MSRP
$199.80
Now Only!
$135.00

The Mac Valves 421A-B0A-DM-DDA is a 1/4" 24Vdc double solenoid valve. It comes from the 400 Series. It offers a Cv 1.0 and a maximum pressure of 120 PSI.




Technical Specifications

Max Temperature: 122 F
Min Temperature: 0 F
Max PSI: 120
Voltage DC: 24

Product Description

400 Series 1/4" 24Vdc Double Solenoid Valve

From Mac Valves, this is a 1/4" 24Vdc double solenoid valve. As part of the 400 Series, the valve features a range of benefits and features including a non-locking recessed manual operator, a single pressure valve, a muffled pilot exhaust, bistable operation, and an individual in-line installation. The part doesn't require lubrication.

Specifications:

  • Max Temperature: 122 F
  • Min Temperature: 0 F
  • Max PSI: 120
  • Power Consumption: 5.4 W
  • Voltage DC: 24
  • Flow: Cv 1.0
  • Mounting Mode: In-Line Installation
  • Function: Double solenoid piloted valve
  • 400 Series
  • Valve Function: 5-ports, 2-positions, bistable
